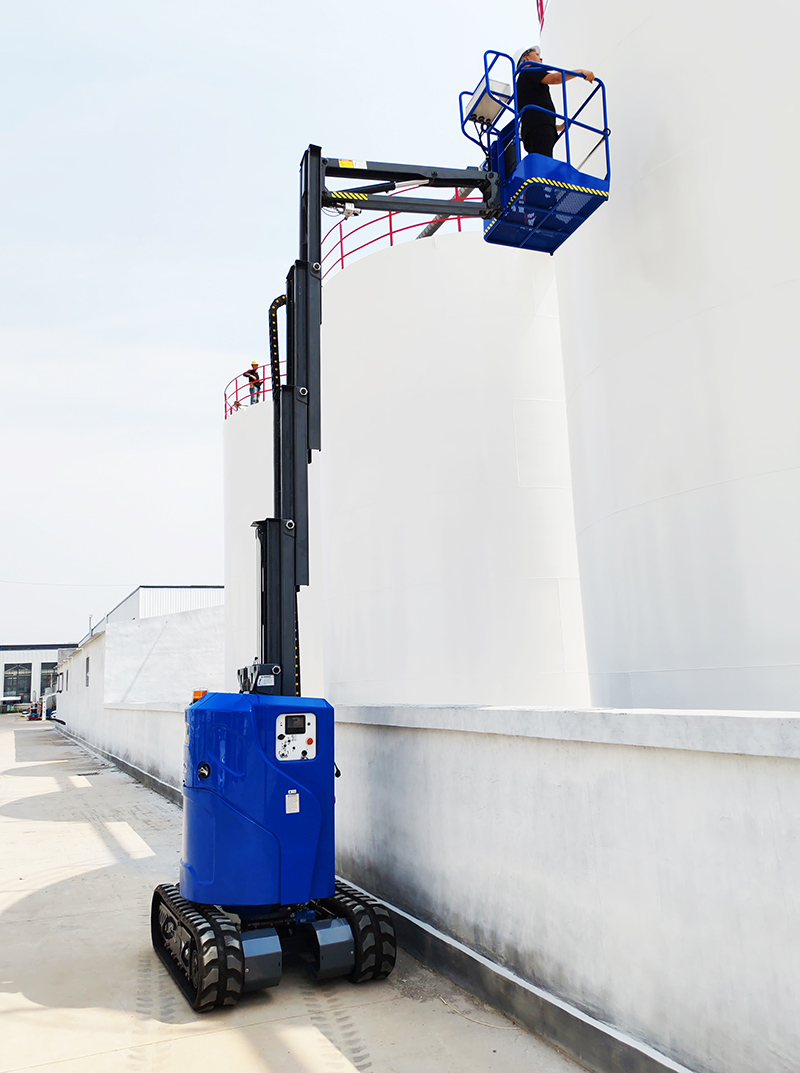

Jib Type Crawler Man Lift
Jib type crawler man lift features 10m max working height and extended 3.61m horizontal outreach, engineered for new factory overhead pipeline erection and indoor steel beam installation. Adopting heavy-duty forklift-style mast frame, this forklift mast tracked aerial platform owns total 3300kg self-weight for superior anti-tilt performance on unfinished construction ground.
Same 250mm thick rubber crawler as DXTT-9C keeps outstanding ground passing ability, while upgraded up-and-over height at 6.4m helps operators span crossbeam obstacles inside workshop; 220° full turret rotation makes it become popular 220° rotatable mast aerial lift among domestic and overseas aerial equipment rental fleets.
Technical Data Sheet
| Model |
DXTT-9C |
DXTT-10C |
| Max. Working Height |
9m |
10m |
| Max. Platform Height |
7m |
8m |
| Loading Capacity |
200kg |
200kg |
| Max. Horizontal Reach |
3.36m |
3.61m |
| Up and Over Height |
5.5m |
6.4m |
| Guardrail height |
1.1m |
1.1m |
| Overall Length(A) |
2.87m |
2.97m |
| Overall Width(B) |
1.2m |
1.2m |
| Overall Height(C) |
1.99m |
2.14m |
| Platform Dimension |
0.8×0.94m |
0.8×0.94m |
| Ground Clearance(Stowed) |
80mm |
80mm |
| Ground Clearance(Raised) |
80mm |
80mm |
| Wheel Base(D) |
1.23m |
1.23m |
| Occupants |
2 |
2 |
| Jib-Range of Articulation |
120° |
120° |
| Swing |
220° |
220° |
| Max.Allowance Tilt Angle |
X-2° Y-2° |
X-2° Y-2° |
| Travel Speed(Stowed) |
1.8km/h |
1.8km/h |
| Travel Speed(Raised) |
0.8km/h |
0.8km/h |
| Gradeability |
20% |
20% |
| Track |
250mm |
250mm |
| Drive Motors |
48V/3kW |
48V/3kW |
| Lifting Motor |
48V/3kW |
48V/3kW |
| Battery |
48V/220Ah |
48V/220Ah |
| Charger |
48V/35A |
48V/35A |
| Weight |
2980kg |
3300kg |
Core Usage Fields for DXTT-10C Aerial Platform
- New industrial plant overhead HVAC & process pipeline installation project
- Large logistics warehouse ceiling racking and fire protection piping setup
- Factory renovation high-altitude lamp and electrical wiring modification
- Short-term equipment rental for medium & small engineering contractors
Complete Built-in Safety Accessories
Equipped with manual brake release, horn, hour meter and overload load sense system; emergency stop button arranged both on platform and ground control cabinet, chain tension inspect structure extends service life under frequent rental working conditions.
Profit Advantages for Rental Companies
Zero-fuel all-electric setup eliminates daily fuel expense; 24V/35A automatic charger supports unattended overnight charging, reducing yard management manpower cost, large outreach and 10m height expand usable job types to improve monthly rental rate of this tracked vertical mast lift with jib.
