Self Propelled Mini Scissor Lift

Short Description:

Mini self propelled scissor lift is compact with a small turning radius for tight work space.It is light,meaning it can be used in weight-sensitive floors.The platform is spacious enough to hold two to three workers and it can be used both indoors and outdoors.


  • Platform size range: 1170*600mm
  • Capacity range: 300kg
  • Max Platform height range: 3m~3.9m
  • Free ocean shipping insurance available
  • Free LCL shipping available at some ports
  • Technical Data

    Features&Configurations

    Real Photo Display

    Product Tags

    Self-propelled mini scissor lift has the function of automatic walking machine, integrated design, built-in battery power supply, can work in different situations, no external power supply, making the moving process easier. The operation and steering of the equipment can be completed by only one person. Operator only needs to master the control handle to complete the front, back, steering, fast and slow walking of the equipment, which greatly facilitates the operator's work, flexible movement and convenient operation.

    Similar to the mini self-propelled lift machinery, we also have a mobile mini scissor lift. Its moving process is not as convenient as self-propelled equipment, and the price is cheaper. If you have a lower budget, you can consider our mobile mini scissor lift.

    According to different work purposes, we have several other models of scissor lift, which can support the work needs of different industries. If you have the high-altitude scissor lift platform you need, please send us an inquiry to learn more about its performance!

    FAQ

    Q: What is the maximum height of the manual mini scissor lift?

    A: Its maximum height can reach 3.9 meters.

    Q: What is the quality of your self-propelled mini scissor lift?

    A: Our mini scissor lifts have passed the global quality system certification, are very durable and have high stability.

    Q: Do your prices have a competitive advantage?

    A: Our factory has introduced many production lines with high production efficiency, product quality standards, and reduced production costs to a certain extent, so the price is very favorable.

    Q: What if I want to know the specific price?

    A: You can directly click "Send email to us" on the product page to send us an email, or click "Contact Us" for more contact information. We will see and reply to all the inquiries received by the contact information.



    Video

    Specifications

    Model Type

    SPM3.0

    SPM3.9

    Max. Platform Height (mm)

    3000

    3900

    Max. Working Height (mm)

    5000

    5900

    Lift Rated Capacity (kg)

    300

    300

    Ground Clearance (mm)

    60

    Platform Size (mm)

    1170*600

    Wheelbase (mm)

    990

    Min. turning radius (mm)

    1200

    Max. Drive peed(Platform Lifted)

    4km/h

    Max. Drive Speed(Platform down)

    0.8km/h

    Lifting/falling speed (SEC)

    20/30

    Max. Travel Grade (%)

    10-15

    Drive motors (V/KW)

    2×24/0.3

    Lifting motor (V/KW)

    24/0.8

    Battery (V/AH)

    2×12/ 80

    Charger (V/A)

    24/15A

    Max allowable working angle

    Overall Length (mm)

    1180

    Overall Width (mm)

    760

    Overall Height (mm)

    1830

    1930

    Overall Net Weight (kg)

    490

    600

    Why Choose Us



    As a professional mini scisor lift platform supplier, we have provided professional and safe lifting equipment to many countries around the world, including the United Kingdom, Germany, the Netherlands, Serbia, Australia, Saudi Arabia, Sri Lanka, India, New Zealand, Malaysia, Canada and others nation. Our equipment takes into account the affordable price and excellent work performance. In addition, we can also provide perfect after-sales service. There is no doubt that we will be your best choice!



    Mini flexible design:

    Small volume make the mini lift with flexible moving and working

    Emergency lowering valve:

    In the event of an emergency or power failure, this valve can lower the platform.

    Safety explosion-proof valve:

    In the event of tubing burst or an emergency power failure, the platform will not fall.

    48

    Overload protection:

    An overload protection device installed to prevent the main power line from overheating and damage to the protector due to overload

    Scissor structure:

    It adopts scissor design, it is sturdy and durable, the effect is good, and it is more stable

    High-quality hydraulic structure:

    The hydraulic system is designed reasonably, the oil cylinder will not produce impurities, and the maintenance is easier.

    Advantages

    Operating platform:

    The operation panel of our lift is installed on the platform, and the operator can easily control it on the platform.

    Small size:

    Self-propelled mini scissor lifts are small in size and can travel freely in narrow spaces, expanding the operating environment.

    Durable battery:

    Mobile mini scissor lift is equipped with a durable battery, so that it is more convenient to move during the work process, and there is no need to worry about whether the working position is supplied with AC power.

    Scissor design structure:

    Scissor lift adopts a scissor-type design, which is more stable and firmer and has higher safety.

    Easy installation:

    The structure of the lift is relatively simple. After receiving the mechanical equipment, it can be easily installed according to the installation notes.



    Application

    Case 1

    One of our customers in Canada bought our own mini scissor lift for building construction. He owns a construction company and helps some companies build factories, warehouses and other buildings. Our elevator equipment is relatively small, so it can easily pass through narrow construction sites to provide operators with a suitable height working platform. The operation panel of the lift equipment is installed on the high-altitude platform, so the operator can complete the movement of the scissor lift by one person, which greatly improves the work efficiency. The customer recognized the quality of our mini self-scissor lifts. In order to improve the efficiency of his company, he decided to repurchase 5 mini self-scissor lifts for construction work.

     49-49

    Case 2

    One of our customers in Canada bought our own mini scissor lift for interior decoration. He owns a decoration company and needs to work indoors frequently. The lifting equipment is relatively small, so it can easily enter the room through the narrow door of the house. The operation panel of the lift equipment is installed on the high-altitude platform, so the operator can complete the movement of the scissor lift by one person, which greatly improves the work efficiency. Scissor-type machinery is equipped with high-quality batteries, and it is easier to supply AC power without the need to carry charging equipment during work. The quality of mini self-scissor lifts has been affirmed by customers. In order to improve the work efficiency of their company staff, he decided to repurchase two mini self-scissor lifts.

    50-50

    5
    4

    Details

    Hydraulic Pump Station and Motor

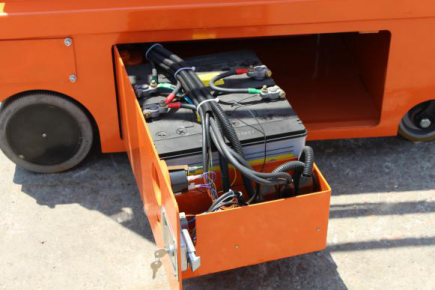

    Battery Group

    Battery Indicator and Charger Plug

    Control Panel on the Chassis

    Control Handle on the Platform

    Driving Wheels


  • Previous:
  • Next:

  • Features & Advantages:

    1. Self-drive system for on site maneuvering from platform (stowed)
    2. Roll-out deck extension keeps everything you need within arm’s reach (optional)
    3. Non-marking tyres
    4. Power source – 24V (four 6V AH batteries)
    5. Fit through narrow doorways and aisles
    6. Compact dimensions for space efficient storage.

    Configurations:
    Electric driving motor
    Electric driving control system
    Electric motor and hydraulic pump station
    Durable battery
    Battery indicator
    Intelligent battery charger
    Ergonomics control handle
    High strength hydraulic cylinder

    Mini self propelled scissor lift is compact with a small turning radius for tight work space.It is light,means it can be used in weight-sensitive floors.The platform is spacious enough to hold two to three workers and it can be used both indoors and outdoors.It has a weight capacity 300KG and is able to carry both workers and gears.It has centralized battery fill,making battery maintenance easier.

    Further,it can be driven at full height and it has an in-built pothole protection system,that will provide support if it is driven over uneven surfaces.The mini self propelled scissor lift has an effective electric drive,allowing it to run longer than other lift in its class. The scissor lift has low operating costs,because it doesn’t have chains,cables or rollers in its mast.

    Self propelled Mini Scissor Lift adopts special drawer-structure. Two”drawers” are equipped at right and left side of the scissor lift body. Hydraulic pump station and electric motor is put into one drawer. Battery and charger is put into the other drawer. Such special structure make it much easier to maintain

    Two sets Up-down control system is equipped. One is on the low side of the body and the other is on the platform. Ergonomics operation handle on the platform controls all movement of the scissor lift.

    Consequently, self propelled mini scissor lift greatly improved the customers work efficiency.
