High Altitude Operation Vehicle

Short Description:

The high altitude operation vehicle has an advantage that other aerial work equipment cannot compare, that is, it can carry out long-distance operations and is very mobile, moving from one city to another city or even a country. It has an irreplaceable position in municipal operations.


  • Max Platform Height: 10m-26m
  • Capacity Range: 200kg
  • Crane Capacity: 1000kg
  • Free ocean shipping insurance available
  • 12 month warranty time with free spare parts
  • Technical Data

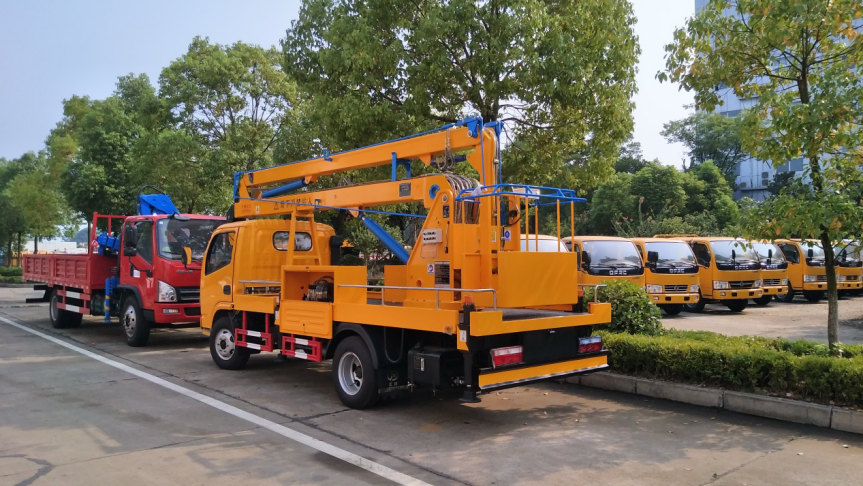

    Real Photo Display

    Features&Advantages

    Product Tags



    Truck Model

    HAOV-10

    HAOV-12

    HAOV-14

    HAOV-16

    HAOV-18

    HAOV-20

    General Data

    Platform Height(m)

    10

    12

    14

    16

    18

    20

    Platform Capacity(kg)

    200

    Rotation Speed

    0-2r/min

    1-2r/min

    1-2r/min

    1-2r/min

    1-2r/min

    1-2r/min

    Max Hook Height(m)

    6.4

    7.4

    8.4

    9

    11.5

    /

    Starting system

    Electric

    Rotation Angle(°)

    360 bothway&continuous

    Hook Capacity(kg)

    1000

    /

    Control Side

    Rotation table/Platform

    Main Dimensions

    Total Weight(kg)

    4495

    5495

    5695

    7490

    10300

    11500

    Curb Weight(kg)

    4365

    5170

    5370

    7295

    10105

    11305

    Overall size(mm)

    5995*1960*2980

    6800×2040×3150

    7650×2040×3170

    8400×2310×3510

    9380×2470×3800

    9480×2470×3860

    Chassis Model

    EQ1041SJ3BDD

    EQ1070DJ3BDF

    EQ1070DJ3BDF

    EQ1080SJ8BDC

    EQ1140LJ9BDF

    EQ1168GLJ4

    Wheel Base(mm)

    2800

    3308

    3300

    3800

    4700

    5100

    Engine Data

    Model

    SD4D/D28D11

    SD4D25R-70

    SD4D25R/D28D11

    CY4SK251

    YC4S170-50

    ISB190 50

    Power/Capacity/HP (kw/ml/hp)

    65-85/2433-2771

    70/2545/95

    70-85/2575/95-115

    115/3856/156

    125/3767

    140/5900/140

    Emission Standard

    CHINA V Emission Standard

    Chassis Brand

    Dongfeng

    Performance Data

    Max Speed (km/h)

    99

    110

    90

    Cab Capacity

    2/5

    2/5

    Axle Quantity

    2

    Axle Capacity(kg)

    1800/2695

    2200/3295

    2280/3415

    3000/4490

    4120/6180

    4080/7517

    Tire Quantity

    6

    Tire Dimensions

    6.50-16/6.50R16

    7.00R16LT 10PR

    7.00-16/7.00R16

    7.50R16

    8.25R20

    9.00/10.0/275

    Tread(mm)

    Front

    1450

    1503/1485/1519

    1503

    1740

    1858

    1880

    Rear

    1470

    1494/1516

    1494

    1610

    1806

    1860

    Overhang length(mm)

    Front

    1215

    1040

    1040

    1130

    1230

    1440

    Rear

    1540

    1497/1250

    1497/1250

    2280

    2500

    3100

    Course Angle(°)

    Front

    21

    20

    20

    20

    18

    20

    Rear

    17

    18

    18

    14

    12.8

    9


  • Previous:
  • Next:

  • Advantages:
    1.Good stability base on H type outrigger and suit for any kind working environment.
    2.High quality pump station make it lift and fall very stably.
    3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
    4.Equipped with Integrated electronic control valve block achieve easy operation.
    5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
    6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
    7.Up to American standard ANSI/ASME and Europe standard EN1570

    Features:

    1, The boom and legs are made of low alloy Q345 profiles, surrounded by no weld, beautiful appearance, the force, high strength;

    2, H-leg stability, legs can be operated simultaneously or separately, flexible operation, can adapt to a variety of conditions;

    3, Slewing mechanism is adjustable, easy to adjust;

    4, Two-way rotary table 360 ° rotation, the use of advanced worm gear deceleration mechanism (with self-lubricating and self-locking function), post-maintenance can also easily adjust the bolt position to easily achieve the desired effect;

    5, The car operation using integrated control valve block mode, beautiful layout, stable operation, easy maintenance;

    6, Get off and on the car interlocking, safe and reliable operation;

    7, The car operation through the throttle valve to achieve Promise speed;

    8, The work platform using mechanical leveling, more stable and reliable;

    9, Turntable and basket with start and stop switch, easy to operate, save fuel

    Safety Precautions:
    1. Explosion-proof valves
    2. Spillover valve
    3. Emergency decline valve
    4. Overload protection locking device.
    5. Emergency decline valve
    6. Overload protection locking device.

    Our Service:
    1.The most suitable model will be recommended to you once we know about your requirement.
    2.Shipment can be arranged from our port to your destination port.
    3.Opetion video can be sent to you if needed.
    4.Maintenance video will be given once the self propelled scissor lifts platform break down to help you repair.
    5.Parts of truck can be sent to you by express within 7 days if needed.
