Construction Crawler Vertical Lift

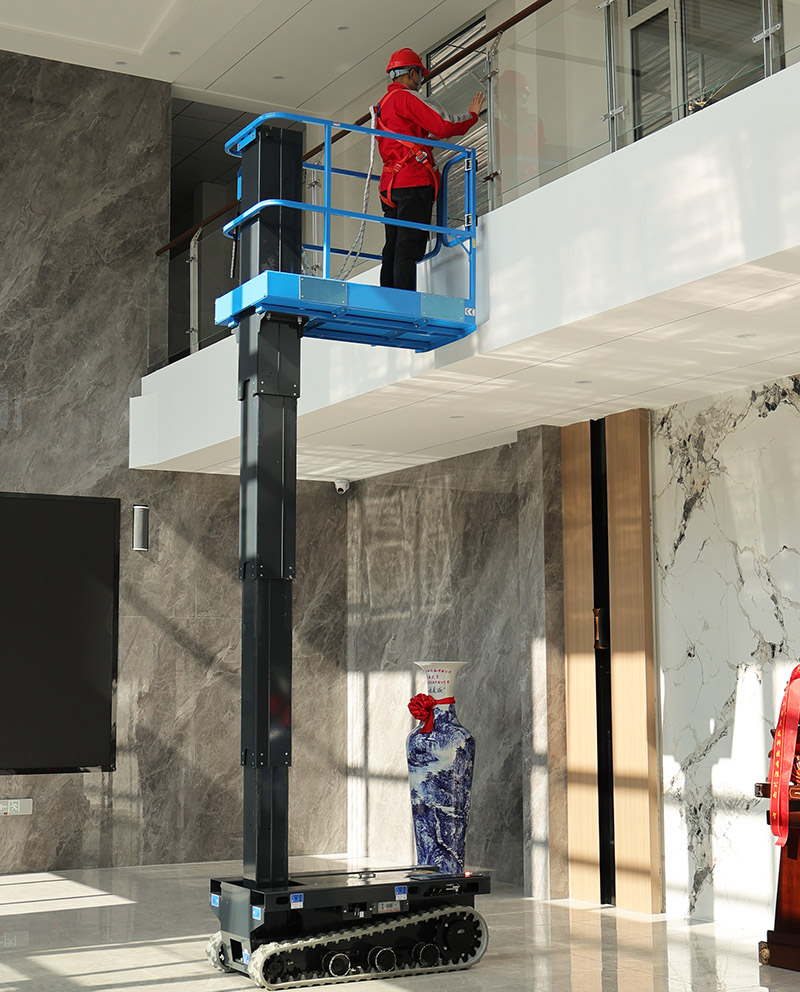

Construction crawler vertical lift is specially refined for closed indoor construction and daily building maintenance, designed as a small-sized man lift aerial work platform solving narrow access problems in finished commercial spaces. Different from conventional wheel mast lifts that easily scratch finished floors, this unit equips full wrapped rubber crawler tracks to spread overall machine weight and cut unit ground pressure significantly.
With max working height hitting 5.8 meters and 200kg rated load capacity, the DXTT-4C can carry two operators plus installation hand tools to finish lamp installation, air duct repair and wall trim modification. Its slim folded outer dimension allows free passage through standard indoor doors and regular passenger elevators, greatly simplifying multi-floor cross-area transportation inside office buildings and shopping plazas.
Technical Data Sheet
|
Model
|
DXTT4C |
|
Max.Working Height
|
5.8m |
|
Max. Platform Height
|
3.8m |
|
Loading Capacity
|
200kg
|
|
Overall Length
|
1.44m
|
|
Overall Width
|
0.79m
|
|
Overall Height(stowed)
|
1.8m
|
|
Platform Dimension
|
1.4×0.75m
|
|
Wheel Base
|
1.08m
|
|
Occupants
|
2 |
|
Ground Clearance
|
60mm |
|
Up/Down Speed
|
31/32sec
|
|
Gradeability
|
25%
|
|
Track
|
150mm
|
|
Driving Motor
|
2×24VDC/0.9kw
|
|
Lifting Motor
|
24VDC/2.2kw
|
|
Battery
|
2×12V/100Ah
|
|
Charger
|
24V/15A
|
|
Weight
|
740kg
|
Main Application Scenarios of DXTT-4C Aerial Work Platform
- Shopping mall daily ceiling lamp maintenance and advertising frame replacement
- High-star hotel interior renovation, lobby curtain and air-conditioning pipeline installation
- Office building fire equipment overhaul and wiring layout on top of partition wall
- Exhibition hall temporary booth erection and post-event site dismantling work
Built-in Safety Configuration
Proportional hydraulic handle adjusts lifting speed smoothly; independent emergency lowering system can drop platform without power supply when sudden blackout happens. Both platform and ground position install physical emergency stop switch, together with anti-drop hydraulic cylinder valve to prevent unexpected platform falling caused by pipeline leakage.
Why Indoor Contractors Prefer DXTT-4C Crawler Man Lift
All-electric zero-emission design satisfies strict indoor environmental requirements without tail gas pollution. Zero turning radius design realizes in-place rotation within narrow corridors, saving extra transfer space compared with traditional wheeled aerial work platform. For decoration teams, it shortens single project construction cycle and reduces later floor compensation expense effectively.
