Floor Shop Crane

Short Description:

The floor shop crane is suitable for warehouse handling and various auto repair shops. For example, you can use it to lift the engine. Our cranes are light and easy to operate, and can move freely in cramped working environments. The strong battery can support a day's work.


  • Max Lifting Height: 2220mm*3350mm
  • Capacity Range: 650-1000kg
  • Max Crane Extend Range: 813mm-1200mm
  • Free ocean shipping insurance available
  • Free LCL ocean shipping available at some ports
  • Technical Data

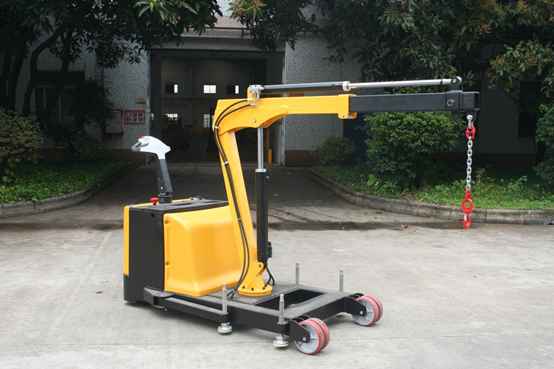

    Real Photo Display

    Features&Safety Precautions

    Product Tags

    Model Type

    Capacity

    (Retracted)

    (kg)

    Capacity

    (Extended)

    (kg)

    Max Lifting Height

    Retracted/Extended

    Max Length crane extanded

    Max length legs extended

    Retracted size

    (W*L*H)

    Net weight

    kg

    FSC-25

    1000

    250

    2220/3310mm

    813mm

    600mm

    762*2032*1600mm

    500

    FSC-25-AA

    1000

    250

    2260/3350mm

    1220mm

    500mm

    762*2032*1600mm

    480

    FSC-CB-15

    650

    150

    2250/3340mm

    813mm

    813mm

    889*2794*1727mm

    770

    Details

    Adjustable leg

    Control panel

    Cylinder

    Extended boom

    Hook with chain

    Main boom

    Move handle

    Oil Valve

    Option handle

    Power switch

    Pu wheel

    Lifting ring


  • Previous:
  • Next:

  • Features&Advantages

    1.Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely.

    2.24V DC drive and lift motor handles heavy-duty jobs.

    Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn.

    3.Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.

    4.Powered shop crane has two 12V, 80 – 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge.

    5.Poly-on-steel steer and load wheels.

    6.3-4 hour operation at full charge – 8 hours when used intermittently. Includes rigid hook with safety latch

    Safety Precautions:

    1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.

    2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.

    3. Emergency decline valve: it can go down when you meet an emergency or the power off.
