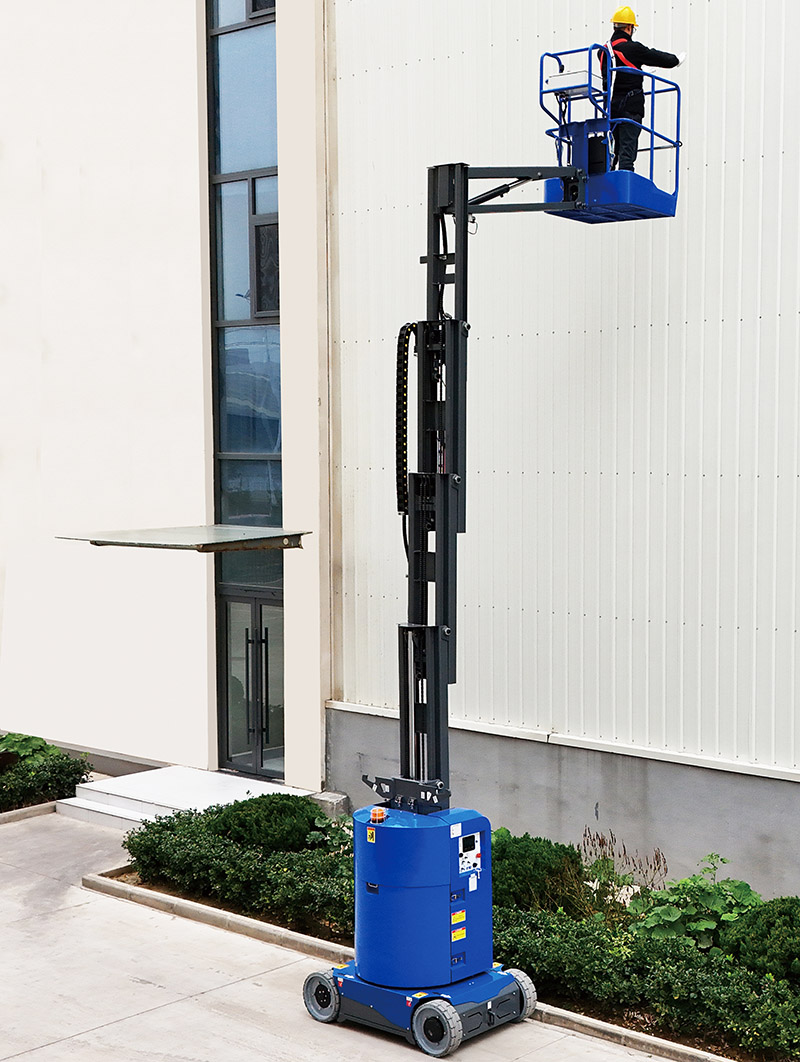

High Reach Articulating Jib Vertical Man Lift
High Reach Articulating Jib Vertical Man Lift delivers 10.65m maximum working height and extended 3.61m horizontal outreach, designed for large shopping mall renovation, exhibition hall reconstruction and commercial real estate upgrade projects as premium indoor overreach mast aerial work platform. Higher 7m up-and-over height easily crosses thick overhead beams and suspended pipeline clusters widely seen inside big commercial buildings.
Retain 352° full turret rotation to realize full-range site adjustment, same non-marking wheel setup adapts both newly laid commercial tile and partially unfinished concrete floor during staged mall renovation; heavier 3300kg dead weight enhances anti-sway stability when fully extended for long-hour rental working, becoming mainstream 352° swing vertical aerial platform for global aerial equipment leasing fleets.
Specification Data Sheet
|
Model |
DXTT-10 |
DXTT-11 |
| Max. Working Height |
9.7m |
10.65m |
| Max. Platform Height |
7.7m |
8.65m |
| Loading Capacity |
200kg |
200kg |
| Max. Horizontal Reach |
3.36m |
3.61m |
| Up and Over Height |
6.3m |
7m |
| Guardrail height |
1.1m |
1.1m |
| Overall Length(A) |
2.78m |
2.88m |
| Overall Width(B) |
1.0m |
1.0m |
| Overall Height(C) |
1.99m |
2.14m |
| Platform Dimension |
0.8×0.93m |
0.8×0.93m |
| Ground Clearance(Stowed) |
90mm |
70mm |
| Ground Clearance(Raised) |
90mm |
70mm |
| Wheel Base(D) |
1.2m |
1.2m |
| Occupants |
2 |
2 |
| Jib-Range of Articulation |
120° |
120° |
| Travel Speed(Stowed) |
4.5km/h |
4.5km/h |
| Travel Speed(Raised) |
0.8km/h |
0.8km/h |
| Gradeability |
25% |
25% |
| Drive Types |
Φ406×125mm |
Φ406×125mm |
| Drive Motors |
24VDC/0.9kW |
24VDC/0.9kW |
| Lifting Motor |
24VDC/3kW |
24VDC/3kW |
| Battery |
24V/220Ah |
24V/220Ah |
| Charger |
24V/30A |
24V/30A |
| Weight |
2960kg |
3300kg |
Primary Application Fields
- Large shopping mall atrium ceiling renovation and storefront billboard replacement
- Exhibition center indoor steel structure maintenance and temporary booth erection
- Commercial plaza overhead fire piping and central air conditioning overhaul
- Medium & large decoration engineering company short-term equipment rental service
Full Range Standard Safety Parts
Equipped with manual brake release, onboard hour meter, horn and charging indicator; emergency stop button installed on both platform and ground control panel, chain tension inspection structure and overload protection sensor lower breakdown frequency under frequent rental working cycles.
Rental Business Profit Benefits
Full-electric drive eliminates fuel consumption cost; matched 24V/30A automatic charger supports unattended overnight charging to save warehouse management manpower, higher working parameters make this Forklift Style Vertical Mast Lift with JIB more competitive in high-end commercial renovation rental market.
