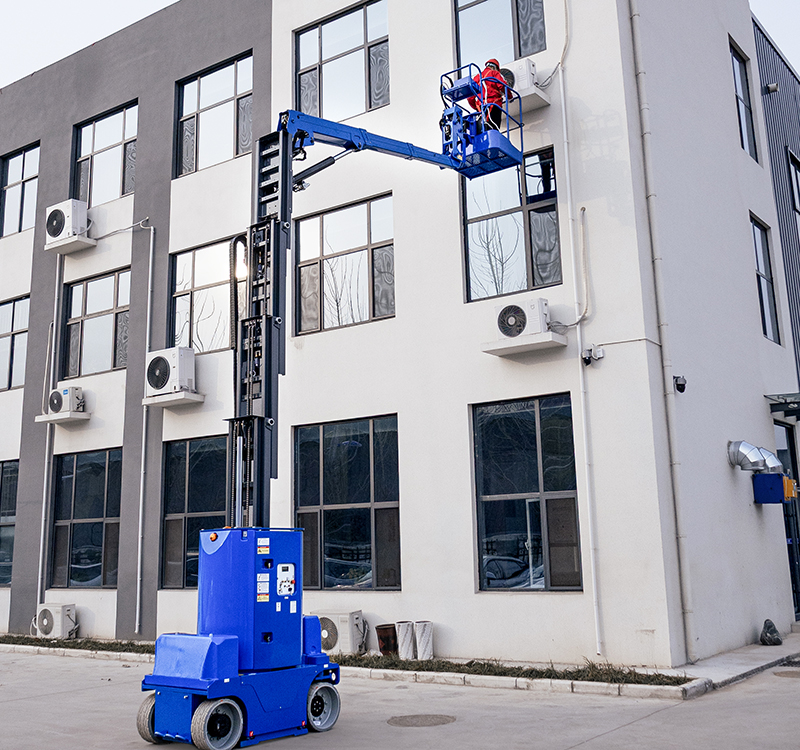

12m Telescopic Jib Vertical Mast Work Lift
25% Gradeability for Unfinished Job Sites
Extended Jib Forklift Mast Aerial Platform navigates uneven concrete ground and temporary slopes inside ongoing industrial park construction zones
Heavy 5800kg Stabilized Base Frame
Reinforced chassis improves anti-sway performance during long-term fully-extended rental operations
130° Adjustable Articulating Working Jib
High Reach Indoor & Outdoor Articulating Vertical Lift adapts variable angles for irregular factory wall maintenance tasks
DXTT-12N Extended Jib Forklift Mast Aerial Platform
Designed specifically to satisfy industrial park retrofitting and global aerial equipment leasing demands, DXTT-12N adopts robust forklift-style mast construction with a total operating weight of 5800kg to accommodate mixed working environments of raw unfinished factory floors and finished paved park roadways. As upgraded wide-outreach Wide Outreach Non Marking Tyre Mast Aerial Work Platform, its 5.6m horizontal outreach easily handles overhanging beam anti-corrosion coating and external pipe reconstruction tasks inaccessible for standard short-jib mast lifts.
3.6km/h compact traveling speed accelerates inter-site relocation across sprawling industrial parks, while large-capacity 48V 220Ah storage batteries deliver stable power to support full-day intermittent rental shifts for multiple independent construction crews within a single workday.
Specification Sheet
| Model |
DXTT-12N |
| Max. Working Height |
12m |
| Max. Platform Height |
10m |
| Loading Capacity |
200kg |
| Max. Horizontal Reach |
5.6m |
| Up and Over Height |
7.2m |
| Guardrail height |
1.1m |
| Overall Length(A) |
3.75m |
| Overall Width(B) |
0.99m |
| Overall Height(C) |
1.99m |
| Platform Dimension |
0.8×0.93m |
| Ground Clearance(Stowed) |
70mm |
| Ground Clearance(Raised) |
15mm |
| Wheel Base(D) |
1.28m |
| Occupants |
2 |
| Jib-Range of Articulation |
130° |
| Travel Speed(Stowed) |
3.6km/h |
| Travel Speed(Raised) |
0.7km/h |
| Swing (Continuous) |
360° |
| Max.Allowance Tilt Angle |
X-2° Y-2° |
| Gradeability |
25% |
| Drive Types |
Φ457×178mm |
| Drive Motors |
48V/2.5kW |
| Lifting Motor |
48V/3kW |
| Battery |
48V/220Ah |
| Charger |
48V/35A |
| Weight |
5800kg |
Core Working Applications Within Industrial Zones
- Outer wall rust stripping and anti-corrosion coating for outdated manufacturing workshops
- Ventilation duct and drainage pipe replacement on industrial building exterior walls
- Fire protection piping modification for high-ceiling logistics warehouse outer structures
- Short-term equipment leasing service for local industrial renovation subcontractors
Complete Safety Parts for High-Frequency Rental Usage
Standard equipped with manual brake release, runtime hour meter, warning horn and charging indicator lamp. Optimized chain tension inspection layout lowers routine maintenance frequency under intensive rental cycles; dual-position emergency stop buttons are installed on platform deck and ground control panel to satisfy global rental equipment safety standards.
Economic Advantages for Aerial Equipment Rental Enterprises
Extended horizontal outreach expands applicable project categories and lifts monthly equipment rental occupancy ratio. Full-electric configuration eliminates recurring fuel expenses and reduces aftersales repair downtime, improving long-term profit margin of Forklift Style Vertical Mast Lift with JIB inside company rental fleets.
