High Gradeability Non Marking Jib Man Lift
✅ 30% Excellent Climbing Capacity
High Gradeability Non Marking Jib Man Lift handles rugged unfinished factory ground and temporary access slope inside renovation industrial parks
✅ 5020kg Heavy Stable Chassis
Heavy body structure reduces shaking during long-hour full outreach rental operation at factory renovation sites
✅ 7.15m Superior Up&Over Height
Heavy Duty Forklift Type Articulating Jib Aerial Platform strides over thick factory overhead cross beams and pipeline clusters easily

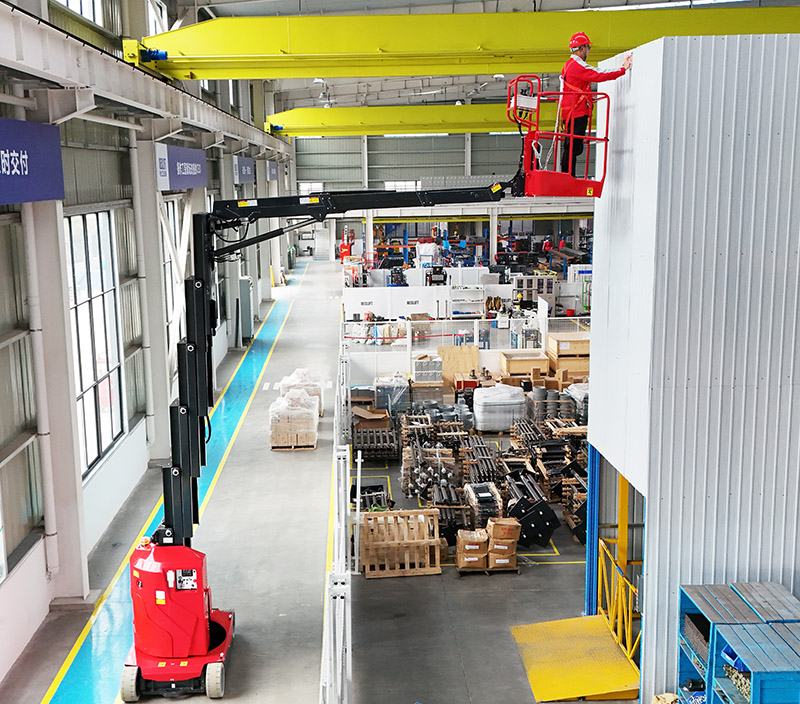

DXTT-13 High Gradeability Non Marking Jib Man Lift
Forklift Style Vertical Mast Lift with JIB is a heavy-duty 12.5m Extended Boom Vertical Mast Work Platform with industry-leading 6m long outreach to solve overhanging factory beam anti-corrosion and overhead pipeline renovation challenges that standard mast lifts cannot reach. Its 30% max gradeability outperforms ordinary wheeled mast lifts, perfectly adapting mixed rough unfinished concrete and finished asphalt ground inside old industrial zones.
3.6km/h fast folded traveling speed improves cross-area transfer efficiency across large industrial park sites, while durable non-marking tires protect newly laid epoxy floor inside renovated workshop interior.
Specification
| Model |
DXTT-13 |
| Max. Working Height |
12.5m |
| Max. Platform Height |
10.5m |
| Loading Capacity |
200kg |
| Max. Horizontal Reach |
6m |
| Up and Over Height |
7.15m |
| Guardrail height |
1m |
| Overall Length(A) |
3.72m |
| Overall Width(B) |
1.2m |
| Overall Height(C) |
1.99m |
| Platform Dimension |
0.8×0.93m |
| Ground Clearance(Stowed) |
80mm |
| Ground Clearance(Raised) |
80mm |
| Wheel Base(D) |
1.55m |
| Occupants |
2 |
| Jib-range of Articulation |
120° |
| Swing |
352° |
| Max. Allowance Tilt Angle |
X-2° Y-2° |
| Travel Speed(Stowed) |
3.6km/h |
| Travel Speed(Raised) |
0.7km/h |
| Gradeability |
30% |
| Drive Types |
Φ406×178mm |
| Drive Motors |
48VDC/3.3kW |
| Lifting Motor |
48VDC/3kW |
| Battery |
48V/260Ah |
| Charger |
48V/35A |
| Weight |
5020kg |
Key Features for Rental Industry
- Onboard Built-in Hour Meter: Real-time runtime record helps rental companies calculate billing cycle and regular maintenance schedule accurately
- Complete Fault Diagnosis System: Self-check module quickly pinpoints hydraulic/electrical faults to cut field maintenance downtime during peak rental period
- Manual Emergency Brake Release: Mechanical brake release design solves stuck parking brake issue without professional service technician
- Chain Tension Inspection Structure: Optimized mast chain layout reduces frequent chain adjustment and later maintenance expense for high-frequency rental usage
- Dual Position Emergency Stop Buttons: Stop buttons equipped both on working platform and ground control panel for double safety protection
- Integrated Charging Protection System: Built-in overcharge prevention module extends overall service lifespan of 260Ah storage battery pack
Main Factory Renovation & Rental Application Fields
- Old manufacturing workshop overhead pipeline replacement and exterior rust-proof coating
- Large logistics warehouse high ceiling fire piping and ventilation system upgrade
- Industrial park auxiliary plant exterior lighting and drainage pipe reconstruction
- Short-term equipment rental for medium-sized factory renovation subcontractors
