U Type Scissor Lift Table China Supplier High–quality Hydraulic Equipment Low Price

Short Description:

U type scissor lift table is mainly used for the lifting and handling of wooden pallets and other material handling tasks. The main work scenes include warehouses, assembly line work, and shipping ports. If the standard model cannot meet your requirements, please contact us to confirm whether it can


  • Platform size range: 1450mm*985mm~1600*1180mm
  • Capacity range: 600kg~1500kg
  • Max Platform height: 860mm
  • Free ocean shipping insurance available
  • Free LCL shipping available at some ports
  • Technical Data

    Optional Configuration

    Real Photo Display

    Product Tags

    We always perform for a tangible staff to ensure that we can present you with the most effective top quality plus the greatest cost for U Type Scissor Lift Table China Supplier High–quality Hydraulic Equipment Low Price, The staff of our business with all the use of cutting-edge technologies delivers impeccable excellent solutions supremely adored and appreciated by our customers globally.
    We always perform for a tangible staff to ensure that we can present you with the most effective top quality plus the greatest cost for China Scissor Lift, Scissors Lift, We are your reliable partner in international markets with the best quality products. Our advantages are innovation, flexibility and reliability which have been built during the last twenty years. We focus on providing service for our clients as a key element in strengthening our long-term relationships. Our continual availability of high grade products in combination with our excellent pre-sales and after-sales service ensures strong competitiveness in an increasingly globalized market.

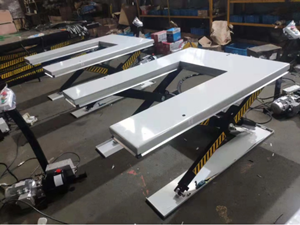

    Low-profile U type scissor lift table is a high-quality hydraulic scissor lift, which is mainly used for material handling tasks such as the lifting and handling of wooden pallets. The main work scenarios include warehouses, assembly line work and shipping ports. U-shaped equipment carrying capacity of ranges from 600KG to 1500KG, and lifting height can reach 860mm. According to different working methods, we can also provide other low scissor lift. If these standard models cannot meet your needs, we also accept custom platform dimensions and lifting heights. According to different functions, we can also produce more lift table.

     Please send us an inquiry for more information!

    Q: What is the maximum capacity of the equipment?

    A: The maximum capacity is 1.5ton.

    Q: Is it easy to install?

    A: Because the structure of the equipment is simple, the assembly process is easy.

    Q: Is the quality of your U type scissor equipment guaranteed?

    A: You can trust the quality of our lift table. Our products are produced on a standardized production line, and we have been certified by the European Union.

    Q: Is your logistics transportation system okay?

    A: You can rest assured that the professional shipping company we have cooperated with for many years provides us with a guarantee.

    1

    High-quality Hydraulic Power Unit:

    Low profile Platform adopts high-quality brand-name hydraulic power unit, which supports the scissor-type lifting platform with good working performance and strong power.

    High-quality Surface Treatment

    In order to ensure the long service life of the equipment, the surface of our single scissor lift has been treated with shot blasting and baking paint. Simple Structure:

    Our equipment has a simple structure and it is easy to install.

    Low Profile Scissor Lift Table:

    Because lifting equipment pumping station is not installed inside the equipment, this platform has a low self-height.

    Explosion-proof Valve Design:

    In the design of the mechanical lifter, a protective hydraulic pipeline is added to prevent the hydraulic pipeline from rupturing.

    Simple Structure:

    Our equipment has a simple structure and it is easy to install.

    Case 1

    One of our customers in Singapore bought our U type lift mainly for the shipment of pallets in the warehouse. Because the size of their pallets is special, we have customized the size for customers to ensure that they are suitable for the customer’s pallets. Because customers often come into close contact with the scissor lift table, for the safety of customers, we recommend that customers install safety bellows around the scissor fork.

    s

    Case 2

    One of our customers in Italy bought our products for warehouse loading. Because of the special structure of the U type scissor lift table, hand trolley pallet truck can be used to easily carry the pallets during use, which improves the work efficiency. After using the lift table, the customer felt that it was suitable for his warehouse work, so he bought back 5 equipment for warehouse work. Hope that customers can have a better working environment after using our products

    d
    E
    R

    Model



    UL600

    UL1000

    UL1500

    Load Capacity

    kg

    600

    1000

    1500

    Platform size LxW

    mm

    1450×985

    1450×1140

    1600×1180

    Size A

    mm

    200

    280

    300

    Size B

    mm

    1080

    1080

    1194

    Size C

    mm

    585

    580

    580

    Min.Platform Height

    mm

    85

    85

    105

    Max.Platform Height

    mm

    860

    860

    860

    Base size LxW

    mm

    1335×947

    1335×947

    1335×947

    Lifting time

    s

    25-35

    25-35

    30-40

    Power

    380V/50Hz

    380V/50Hz

    380V/50Hz

    Net weight

    kg

    207

    280

    380

    We always perform for a tangible staff to ensure that we can present you with the most effective top quality plus the greatest cost for High reputation China Hered Brand HS1413h 14m 16m Heavy Duty Rough Terrain Outdoor Electric Hydraulic Jack Scissors Type Scissor Lift Man Lift Aerial Work Platforms, The staff of our business with all the use of cutting-edge technologies delivers impeccable excellent solutions supremely adored and appreciated by our customers globally.
    High reputation China Scissor Lift, Scissors Lift, We are your reliable partner in international markets with the best quality products. Our advantages are innovation, flexibility and reliability which have been built during the last twenty years. We focus on providing service for our clients as a key element in strengthening our long-term relationships. Our continual availability of high grade products in combination with our excellent pre-sales and after-sales service ensures strong competitiveness in an increasingly globalized market.


  • Previous:
  • Next:

  • 1.

    Remote Control



    Limit within 15m

    2.

    Foot-step Control



    2m line

    3.

    Safety Bellow



    Need to be customized (considering platform size and lifting height)

    Advantages:

    1.Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control.

    2.Stop anywhere at the pre-concerted and accurate location point.

    3. It can work under any condition, great load capacity, safe and reliable.

    4.There are sensitive overload protection devices locking device for falling protection.

    5.Brief structure make it much easier to operate and maintain.

    6. High quality AC power packs are made in Europe.

    7.Removable lifting eye to facilitate handling and lift table installation.

    8.Safe clearance between scissor to prevent damages during operation.

    9.Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in the case of hose burst

    Safety Precautions:

    1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.

    2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.

    3. Emergency decline valve: it can go down when you meet an emergency or the power off.

    4. Anti-dropping device: Prevent falling of platform
