Good Quality Vertical Cargo Lift - China Four Rails Vertical Cargo Lift Supplier CE Certification – Daxin

Short Description:

Technical Data

Product Tags

Feedback (2)

CAR PARKING LIFT equipment is a three-dimensional parking equipment with very modern features and functions. Because with the increasing population of the world and the increasing number of domestic vehicles in some families, the demand for three-dimensional parking is also increasing. Decreasing land resources and increasing economic development are the main reasons for this trend. Without sufficient ground parking spaces, the idea of vehicle parking can only be developed vertically. Therefore, the advent of the three-dimensional garage just solves this problem. In addition, the number of domestic vehicles in some families is increasing, and the parking space of your own home is limited, but if your vertical space is not affected, you can use the CAR PARKING LIFT device to increase the parking space, which is also extremely convenient. Although a small investment is required, an CAR PARKING LIFT unit can last for many years with normal maintenance. Our CAR PARKING LIFT equipment is divided into many kinds, two-column style, four-column style, superimposed style and so on. For companies or shopping malls with large demand for parking spaces, we can also provide vertical circulation CAR PARKING LIFT equipment or parking lot style. But usually for small repair shops and 4S shops, individual users only need to use simple two-post, four-post CAR PARKING LIFT equipment, which is simple, practical and inexpensive, and is the best choice for expanding the parking area. Car Lift Platform, Scissor Lift Truck, Car Hoist,

Good Quality Vertical Cargo Lift - China Four Rails Vertical Cargo Lift Supplier CE Certification – Daxin Detail:

Four rails vertical cargo lift is a kind of non-scissor hydraulic lifting mechanical equipment, which is mainly used for hydraulic lifting mechanical equipment for lifting goods. It is especially suitable for basements, warehouse transformations and new construction shelves and so on. Vertical cargo lifting equipment has the advantages of sturdy structure, large carrying capacity, stable lifting, simple and convenient installation and maintenance, etc. It is an economical and practical low-floor elevator to replace the ideal cargo conveying equipment. The loading capacity is 1-5 tons, and the platform height is 4-10 meters. It can be installed indoors and outdoors.

If you have a limited budget and do not need lifting equipment with a large load-bearing capacity, it is recommended to purchase our two rails vertical cargo elevator. If you don’t have a place to install equipment but you also need a lift to help you work, it is recommended that you purchase our high-altitude scissor platform, which is easy to move and can also be used as a mobile lifting equipment.

For more detailed data information, please send us an inquiry to get it!

FAQ

Q: What’s the height of the platform?

A: The maximum platform height is 10m.

Q: How about the production time?

A: Usually we only need 20-30 days production time.

Q: How about the warranty time?

A: We shall to offer 12 months warranty time with free spare parts and although over the warranty time, we will offer charged parts and online technical support to you for a long time.

Q: How do we send an inquiry to your company?

A: Both the product page and the homepage have our contact information. You can click the button to send an inquiry or contact us directly: sales@daxmachinery.com Whatsapp:+86 15192782747

Q: How about your price?

A: After adopt modular design，which make us reduce a lot of production cost. So our price will be competitive.

Video

Specifications

No.	Structure	Material name	Specification	Material	Place of origin
1.	Body materials	Lead rail	12# Joist steel	manganese steel	Qingdao Iron & Steel Group Company
2.		Counter-tops truss	12# channel steel	Q235C	Qingdao Iron & Steel Group Company
3.		Up platform	checkered plate 4mm	Q345B	Qingdao Iron and Steel Group
4.		Cylinder arm	original tablet 10mm	Q235	Qingdao Iron and Steel Group
5.		Chain	BL634		Hangzhou
6.		connecting pin	Round steel 60*48mm	heat treatment 45＃	Qingdao Iron and Steel Group
6.		Oil-lubricated bearings	54*48mm		Igus (Shanghai)
7.	Hydraulic system	Precision Hydraulic Cylinders	Φ80mm*2		Hebei hengyu brand
8.		Supporting valve			Anshan Lisheng
9.		High pressure piping			Hebei hengyu
10.		Sealing elements			Hebei hengyu
11.	Electric control	AC contractor CJX1		Chint Electric
		Limit switches		Chint Electric
		Micro Switch
		Limit switch YBLX-K3-20X/T		Chint Electric
		Electric motor 3KW
12.	Platform	checkered plate 4mm		120604mm
13.	Voltage	AC380V or customized
14.	Weight	1.4T

Why Choose Us

Our Aluminum Work Platform has high safety and durable quality, providing longer service time and minimum downtime. As a professional manufacturer of scissors sets in northern China, we have provided thousands of scissors sets to the Philippines, Brazil, Peru, Chile, Argentina, Bangladesh, India, Yemen, Saudi Arabia, United Arab Emirates, Malaysia, Thailand and other countries. The safety precautions of the scissor lift are as follows:

Guardrail:

The platform of the vertical cargo lift is equipped with guardrails to ensure the safety of people and goods.

Lifting chains:

Vertical cargo lift uses high-quality lifting chains, which are not easy to damage.

Warranty:

1 year(Free Parts Replacement).

Online service 7*24 hours.

All-life technical support.

High-quality hydraulic pump station:

Our equipment adopts imported hydraulic pump station, which has a longer service life.

Emergency button:

In case of emergency during work, the equipment can be stopped.

Manual:

We provide detailed installation manuals to help customers install lifting machinery.

Advantages

Ramp:

The vertical cargo lift is equipped with a ramp design to ensure that the cargo can be easily transported onto the table.

Checkered Plate Platform:

The design of the platform is non-slip, which can guarantee the safety and stability of people and goods.

Large load-bearing capacity:

The vertical cargo lifting equipment can load up to 1 ton of cargo.

Customizable:

According to the customer’s site and work needs, within a reasonable range, we can provide customers with customized services

Standardized design of accessories:

The accessories of the lifting machinery are standardized, so the installation is more convenient.

Fence:

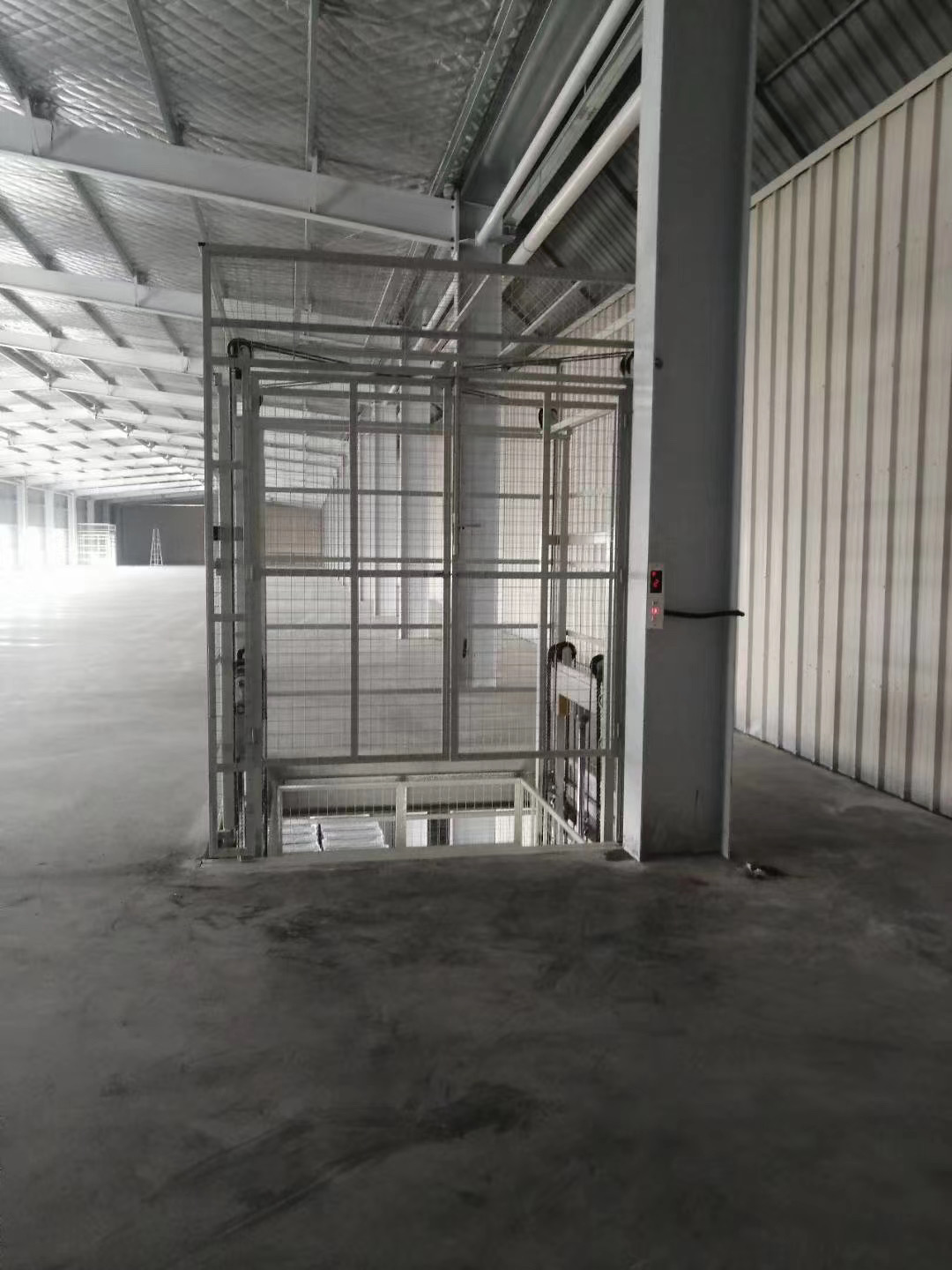

Our equipment can be equipped with fences to ensure safety when the equipment is working.

Application

Case 1

One of our customers in the Philippines bought our four rails vertical cargo lift, which is mainly used to transport car parts from the underground garage to the first floor. His auto repair shop parks many cars that need to be repaired, and it is not convenient to move parts. So he bought our vertical cargo lifting equipment to directly transport the parts from the underground garage to the designated location on the first floor, saving a lot of effort and greatly improving His work efficiency.

Case 2

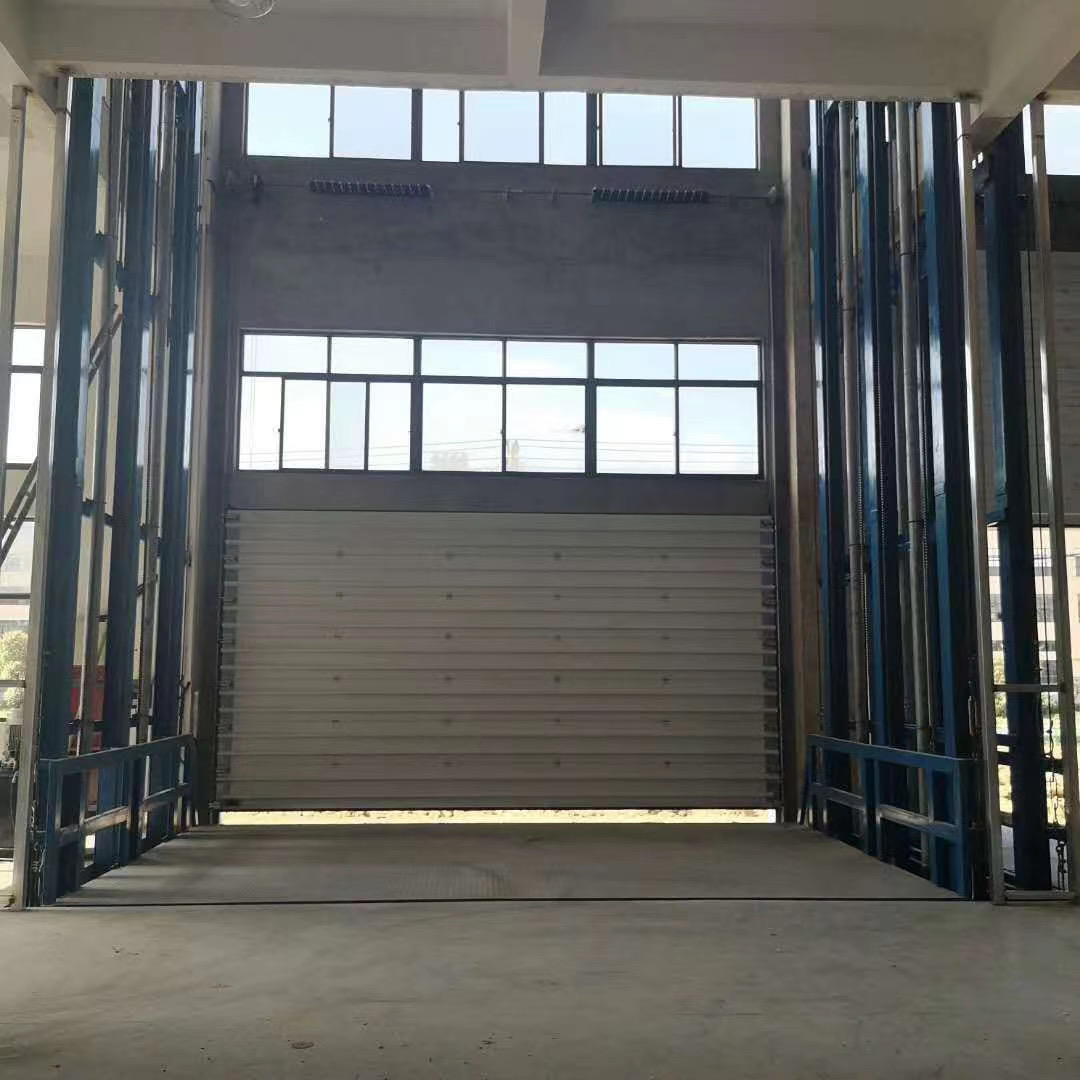

One of our customers in Germany bought our four rails vertical cargo lift and installed it at the entrance of his factory. This installation makes it easier to transport cargo to the truck. Vertical cargo lifting equipment is designed with ramps, and the products produced in the factory can be easily moved to the platform with a forklift, reducing the work pressure of workers. At the same time, our freight cargo lifting equipment is equipped with safety fences, which can ensure the safety of the cargo when it is transported.

Details

Checkered Plate Platform	Rails & Cylinder

Lifting Chains + Safety Rope 1	Lifting Chains + Safety Rope 2

Lifting Chains + Safety Rope 3	Control Panel

Electric Part	Pump Station
