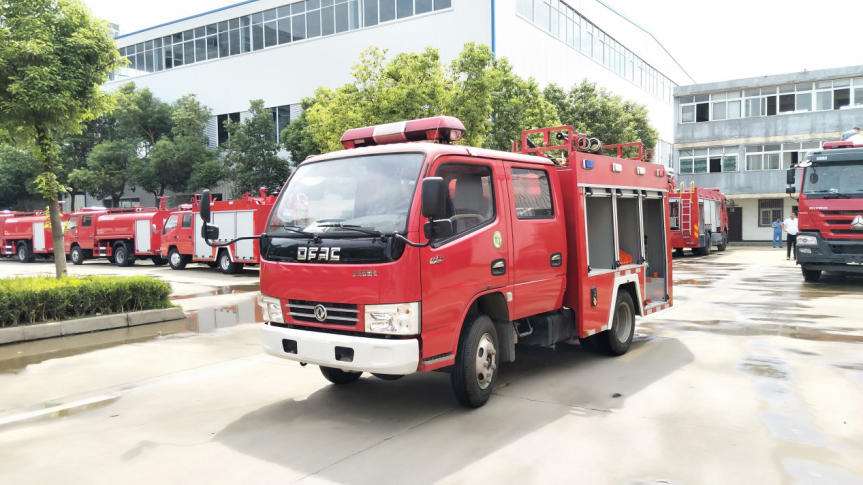

Water Tank Fire Fighting Truck
Main Data
| Overall Size | 5290×1980×2610mm |
| Curb Weight | 4340kg |
| Capacity | 600kg Water |
| Max Speed | 90km/h |
| Rated Flow of Fire Pump | 30L/s 1.0MPa |
| Rated Flow of Fire Monitor | 24L/s 1.0MPa |
| Fire Monitor Range | Foam≥40m Water≥50m |
| Rate of Power | 65/4.36=14.9 |
| Approach Angle/Depature Angel | 21°/14° |
Chassis Data
| Model | EQ1168GLJ5 |
| OEM | Dongfeng Commercial Vehicle Co., Ltd. |
| Rated Power of Engine | 65kw |
| Displacement | 2270ml |
| Engine Emission Standard | GB17691-2005国V |
| Drive Mode | 4×2 |
| Wheel Base | 2600mm |
| Max Weight Limit | 4495kg |
| Min Turning Radius | ≤8m |
| Gear Box Mode | Manual |
Cab Data
| Structure | Double seat,Four Door |
| Cab Capacity | 5 people |
| Drive Seat | LHD |
| Equipment | Control box of alarm lamp1、 Alarm lamp；2、 Power change switch； |
Sturcture Design
| The whole vehicle is composed of two parts: the firefighter's cabin and the body. The body layout adopts an integral frame structure, with a water tank inside, equipment boxes on both sides, a water pump room at the rear, and the tank body is a parallel cuboid box tank. |
|
|
