Horse Trailer
Specifications & Data-Sheet
| Overall Dimension | 3745*2270*2590mm |
| Dimension of Body | 2895*1750*2230mm |
| Maximum Internal Dimension of Body | 2870*1700*2155mm |
| Chassis | hot-galvanized RHS (3.5mm-4.0mm) |
| Frame | hot-galvanized RHS(2.5mm) |
| Body | galvanized iron sheet(1.0mm-1.5mm) |
| Roof | glass fibre reinforced plastic 2950*1750mm |
| Wheel/Tyre | alloy rims 185R14C |
| Spare Wheel | none |
| Suspension | 5-leaf plate spring suspension(400KG/leaf)Independent |
| Axles | trailer axles |
| Brake System | one axle electric brake with break-away systems |
| Front window | 1220*305 front window |
| Side window | none |
| Side Door | one |
| Turn Light | two each side(except tail lights) |
| Tail Lights | one set |
| Horse Divider | normal cushion |
| Decorative Front panel | none |
| Mudguard | partialy decorate with aluminium checkered plate |
| Pedal Plate | none |
| External Tie Hooks | two,one each side |
| Jockey Wheel | swing-up jockey wheel |
| A kitchen | none |
| Roof Vents | none |
| Saddle Stents | none |
| Toolbox | none |
| Hay Rack | none |
| Tailgate(upper) | none |
| Tailgate/Ramp Door | 2020*1210mm, pneumatic spring-loaded,10mm rubber cushion |
| Horse Area | 10mm rubber floor |
| Side Area Inner | 3mm rubber cushion |
| Taillight Mounting Plate | iron sheet |
Specifications & Data-Sheet
| Overall Dimension | 3925*2270*2590mm |
| Dimension of Body | 3075*1750*2230mm |
| Maximum Internal Dimension of Body | 3050*1700*2155mm |
| Chassis | hot galvanized RHS (3.5mm-4.0mm) |
| Frame | hot galvanized RHS(2.5mm) |
| Body | Galvanized iron sheet(1.0mm-1.5mm) |
| Roof | glass fibre reinforced plastic 3075*1750mm |
| Wheel/Tyre | alloy wheels 185R14C |
| Spare Wheel | 1,mounted outside |
| Suspension | 5 leaf plate spring suspension(400KG/leaf),Independent |
| Axles | trailer axles |
| Brake System | one axle electric brake with break-away systems |
| Front Window | 1220*610 polycarbonate wind shield |
| Side Window | two rectangle(diamond) sliding windows,one each side |
| Side Door | one |
| Turn Light | two each side(except tail lights) |
| Tail Lights | one set |
| Horse Divider | soft cushion |
| Decorative Front panel | aluminium checkered plate 1.2mm |
| Mudguard | partialy decorate with aluminium checkered plate |
| Pedal Plate | decorate with aluminium checkered plate |
| External Tie Hooks | four, two each side |
| Jockey Wheel | swing-up jockey wheel |
| A kitchen | none |
| Roof Vents | two vents |
| Saddle Stents | none |
| Toolbox | none(optional) |
| Hay Rack | yes, horse bay |
| Tailgate(upper) | 2020*1065mm, pneumatic spring-loaded |
| Tailgate/Ramp Door | 2020*1210mm, pneumatic spring-loaded,10mm rubber cushion |
| Horse Area | 10mm rubber floor |
| Side Area inner | 6mm rubber cushion |
| Taillight Mounting Plate | aluminium checkered plate |
Specifications & Data-Sheet
| Overall Dimensions | 4325*2270*2590mm |
| Dimension of Body | 3475*1750*2230mm |
| Maximum Internal Dimension of body | 3450*1700*2155mm |
| Chassis | hot-galvanized RHS (3.5mm-4.0mm) |
| Frame | hot-galvanized RHS(2.5mm) |
| Body | galvanized(iron) sheet(1.0mm-1.5mm) |
| Roof | glass fibred reinforced plastic 3475*1750mm |
| Wheel/Tyre | alloy wheels 185R14C |
| Spare Wheel | 1,mounted outside |
| Suspension | 6-leaf plate spring suspension(400KG/leaf),Independent |
| Axles | trailer axles |
| Brake System | double axles electric brake with bre4ak away systems |
| Front Window | 1220*610 polycarbonate wind shield |
| Side Window | two rectangle(diamond) sliding windows, one each side |
| Side Door | one |
| Turn Lights | two each side(except tail lights) |
| Tail Lights | two sets |
| Horse Divider | soft cushion and fully padded with stallion head divider |
| Decorative Front panel | aluminium checkered plate 1.2mm |
| Mudguard | protected by aluminium checkered plate |
| Pedal Plate | decorated with aluminium checkered plate |
| External Tie Hooks | four, two each side |
| Jockey Wheel | swing-up jockey wheel |
| A kitchen | with a cupboard and all appliance from yourself |
| Roof Vents | two vents |
| Saddle Stents | hangers in saddle box |
| Toolbox | 800*550*200mm,made of stainless or aluminium |
| Front Rug Rack | one |
| Front Tack Box | one |
| Tailgate(upper) | 1800*1065mm, pneumatic spring-loaded |
| Tailgate/Ramp Door | 1800*1210mm, pneumatic spring-loaded,10mm rubber matting |
| Horse Area | 10mm rubber floor |
| Side Area Inner | 6mm rubber matting |
| Taillight Mounting Plate | aluminium checkered plate |
| Fold Up Beds | two in horse area |
Specifications & Data-Sheet
|
Trailer Materials |
1.1 Chassis material :double hot dip galvanized RHS(3.5mm-4.0mm) |
| 1.2 Frame Material: double hot dip galvanized RHS(2.5mm) | |
| 1.3 Body Panel galvanized(1.2mm) | |
| 1.4 Roof special molded FRP3260*1980 | |
| 1.5 NUTS &BOLTS stainless steel | |
|
Wheels and Tires |
2.1 Wheel Rim 14″ aluminum alloy rims |
| 2.2Tyres 185R14C | |
| 2.3 Spare Wheel one | |
|
Axles &Suspensions |
3.1Axles two special trailer axles |
| 3.2 Leaf Springs roll rocker tandem spring suspension 5 plates | |
| 3.3 Brake system single axle electric brake with break-away systems | |
|
Windows&doors
|
4.1 Front Window :1220*610 |
| 4.2 Side Windows :two sliding windows，one each side | |
| 4.3 Vents:two | |
| 4.4 Size of Side Door: 1755*615 | |
| 4.5 Rear Upper Door: 2020*1065 | |
| 4.6 Ramp door: 2020*1210 | |
| 4.7 Rear Upper& Ramp Door Strut: high-intensity anti-rust strut | |
| 4.8 Hinges for Rear Upper Door : special 6mm diameter copper hinges | |
|
Draw-bar
|
5.1 Drawbar Checker Plate: 1.2mm aluminium |
| 5.2 Drawbar Safety Chain: two | |
| 5.3 Bracing Wheel: one | |
|
Lights &Retro Reflectors |
6.1 Trailer Plugs: square 7 wick plug |
| 6.2 Side Lamps: 6 | |
| 6.3 REAR LAMPS LED group | |
| 6.4 Rear Lamps Stand: aluminum | |
| 6.5 Retro Reflectors: 8 | |
|
Mudguard |
7.1 Mudguard Type: external mudguard |
| 7.2 Mudguard checker plate: 1.2mm aluminium in the front of mudguard | |
| 7.3 Pedal &Aluminum Step: 1.2mm aluminium decoration board | |
|
Interior &Exterior |
8.1A Kitchen: none |
| 8.2 Horse Protection frame: full padded | |
| 8.3 Horse Ring : four | |
| 8.4 Rubber Matting for Ramp Door: 10mm rubber matting | |
| 8.5 Rubber Matting for floor: 10mm rubber matting | |
| 8.6 Rubber matting for Inner side panel: 6mm rubber matting | |
| 8.7 Wood board for floor &ramp door: 18mm hardwood plywood | |
| 8.8 Rug rack: side | |
| 8.9 Saddle rack in saddle box | |
| 8.10 Saddle Box: 1200mm height for 2 saddles | |
| 8.11 Painting single or customized | |
|
Dimensions |
9.1 Overall Dimensions ( L x W x H: mm ) 4110*2280*2590 |
| 9.2 Body Dimensions ( L x W x H: mm ) 3260*1980*2230 | |
| 9.3 Inner Dimensions ( L x W x H: mm ) 3235*1930*2155 |
Specifications & Data-Sheet
|
TRAILER MATERIALS |
1.1 Chassis material: double hot dip galvanized RHS(3.5mm-4.0mm) |
| 1.2 Frame Material: double hot dip galvanized RHS(2.5mm) | |
| 1.3 Body Panel: galvanized (1.2mm) | |
| 1.4 ROOF :special molded FRP 4120*1980 | |
| 1.5 Nuts & BOLTS stainless steel | |
|
Wheels &Tyres |
2.1 Wheel Rim: 14′ aluminium alloy rims |
| 2.2 Tyres: 185R14C | |
| 2.3 Spare Wheel: one | |
|
Axles & Suspensions |
3.1 Axles: two special trailer axles |
| 3.2 Leaf Springs: roll rocker tandem spring suspension 6 plates | |
| 3.3 Brake System: single axle electric brake with break-away systems | |
|
Windowns & Doors |
4.1 Front Window: 1220*610 |
| 4.2 Side Windows: 2 pop-up rectangle windows,2 sliding rectangular windows | |
| 4.3 Vents: double sash casement vent | |
| 4.4 Size of side door: 1755*615 | |
| 4.5 Rear Upper Door: 2020*1065 | |
| 4.6 Ramp Door: 2020*1210 | |
| 4.7 Rear Upper & Ramp Door Strut: high-intensity anti-rust strut | |
| 4.8 Hinges for Rear Upper Door: special 6mm diameter copper hinges | |
|
DRAWBAR |
5.1 Drawbar Checker Plate: 1.2mm aluminium |
| 5.2 Drawbar Safety Chain: Two | |
| 5.3 Bracing Wheel: one | |
|
Lights & Retro Reflectors |
6.1 Trailer Plugs: square 7 wick plug |
| 6.2 Side Lamps: 6 | |
| 6.3Rear Lamps LED group | |
| 6.4 Rear Lamps Stand aluminium | |
| 6.5 Retro Reflectors: 6 | |
|
Mudguard |
7.1 Mudguard Type: compact mudguard |
| 7.2 Mudguard Checker Plate: 1.2mm aluminium in the front of mudguard | |
| 7.3 Pedal & Aluminum Step: 1.2mm aluminium decoration board | |
|
Interior & Exterior |
8.1A Kitchen: with a cupboard and all appliance from yourself |
| 8.2Horse Protection Frame : full padded | |
| 8.3 Horse Ring: four | |
| 8.4 Rubber Matting for Ramp Door: 10mm rubber matting | |
| 8.5 Rubber Matting for Floor: 10mm rubber matting | |
| 8.6 Rubber Matting for Inner Side Panel: 6mm rubber matting | |
| 8.7 Wood Board for Floor & amp: Ramp Door: 18mm hardwood plywood | |
| 8.8 Rug Rack side | |
| 8.9 Saddle Rack: in saddle box | |
| 8.10 Saddle Box: 1200mm height for 2 saddles | |
| 8.11 PAINTING customized | |
|
Dimensions |
9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 4970*2280*2590 |
| 9.2 BODY DIMENSIONS ( L x W x H: mm ) 4120*1980*2230 | |
| 9.3 INNER DIMENSIONS ( L x W x H: mm ) 4095*1930*2155 |
Specifications & Data-Sheet
|
Trailer Materials |
1.1 Chassis material: double hot dip galvanized RHS(3.5mm-4.0mm) |
| 1.2 Frame Material: double hot dip galvanized RHS(2.5mm) | |
| 1.3 1.3 Body Panel: galvanized (1.2mm) | |
| 1.4 ROOF special molded FRP 4575*1980 | |
| 1.5 NUTS & BOLTS stainless steel | |
|
Wheels & Tires |
2.1 Wheel Rim: 14′ aluminum alloy rims |
| 2.2 TYRES 185R14C | |
| 2.3 Spare Wheel: one | |
|
Axles & Suspensions |
3.1 Axles: two special trailer axles |
| 3.2 Leaf Springs: roll rocker tandem spring suspension 6 plates | |
| 3.3 Brake System:double axles electric brakes with break-away systems | |
|
|
4.1 Front Window: 1220*610 |
| 4.2 Side Windows: 2 pop-up rectangle windows,3 sliding rectangular windows | |
| 4.3 Vents: double sash casement vent | |
| 4.4 Size of side door: 1755*615 | |
| 4.5 Rear Upper Door: 2020*1065 | |
| 4.6Ramp Door: 2020*1210 | |
| 4.7 Rear upper & Ramp Door Strut: high-intensity anti-rust strut | |
| 4.8 Hinges for Rear Upper Door: special 6mm diameter copper hinges | |
|
Draw-bar |
5.1 Drawbar Checker Plate: 1.2mm aluminium |
| 5.2 Drawbar Safety Chain: two | |
| 5.3 Bracing Wheel: one | |
|
Lights & Retro Reflectors |
6.1 Trailer Plugs: square 7 wick plug |
| 6.2 Side Lamps: 6 | |
| 6.3 Rear Lamps LED: group | |
| 6.4 Rear Lamps Stand: aluminium | |
| 6.5 Retro Reflectors: 6 | |
|
Mudguard |
7.1 Mudguard Type: compact mudguard |
| 7.2 Mudguard Checker Plate: 1.2mm aluminium in the front of mudguard | |
| 7.3 Pedal & Aluminum Step: 1.2mm aluminium decoration board | |
|
Interior & Exterior |
8.1 A Kitchen none |
| 8.2 Horse Protection Frame: full padded | |
| 8.3 Horse Ring: six | |
| 8.4 Rubber Matting for Ramp Door: 10mm rubber matting | |
| 8.5 Rubber Matting for Floor: 10mm rubber matting | |
| 8.6 Rubber Matting for Inner Side Panel: 6mm rubber matting | |
| 8.7 Wood Board for Floor& amp; Ramp door: 18mm hardwood plywood | |
| 8.8Rug Rack : side | |
| 8.9 Saddle Rack: in saddle box | |
| 8.10 Saddle Box: 1500mm height for 3 saddles | |
| 8.11 PAINTING single or customized | |
|
Dimensions |
9.1 Overall Dimensions: ( L x W x H: mm ) 5425*2280*2590 |
| 9.2 Body Dimensions: ( L x W x H: mm ) 4575*2280*2230 | |
| 9.3 Inner Dimensions: ( L x W x H: mm ) 4550*1930*2155 |

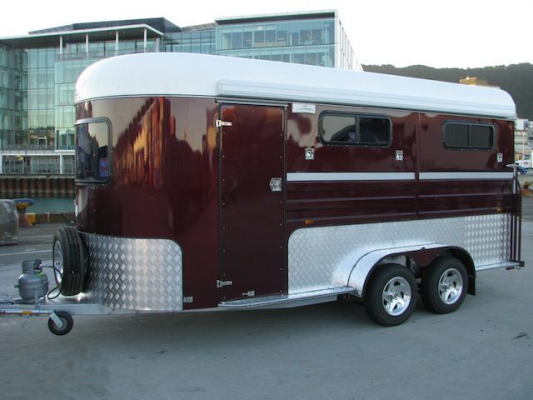

Specifications & Data-Sheet
|
Trailer Materials |
1.1Chassis Material: double hot dip galvanized RHS(3.5mm-4.0mm) |
| 1.2 Frame Material: double hot dip galvanized RHS(2.5mm) | |
| 1.3 Body Panel: galvanized (1.2mm) | |
| 1.4 Roof: special molded FRP 5475*1890*450mm | |
| 1.5 NUTS & BOLTS stainless steel | |
|
Wheels & Tyres |
2.1 Wheels Rim: 15′ Iron rims |
| 2.2 Tyres: 195R15C | |
| 2.3 Spare Wheel: one | |
|
Axles & suspensions |
3.1 Axles two special trailer axles |
| 3.2 Leaf springs roll rocker tandem spring suspension 6 plates | |
| 3.3 Brake system 4 wheel electric brakes with break-away systems | |
|
Windows & doors |
4.1 Front window :1220*610 |
| 4.2 Side windows: 3 pop-up rectangle windows,3 sliding rectangular windows | |
| 4.3 Vents :three sash casement vent | |
| 4.4 Size of side door :1755*615 | |
| 4.5 Rear upper door :2020*1065 | |
| 4.6 Ramp door: 2020*1210 | |
| 4.7 Rear upper & ramp door strut :high-intensity anti-rust strut | |
| 4.8 Hinges for rear upper door: special 6mm diameter copper hinges | |
|
Drawbar |
5.1 Drawbar checker plate :1.2mm aluminium |
| 5.2 Drawbar safety chain :two | |
5.3 Bracing wheel  ne |
|
|
Lights & retro reflectors |
6.1 Trailer plugs: square 7 wick plug |
| 6.2 Side lamps: 6 | |
| 6.3 Rear lamps LED :group | |
| 6.4 Rear lamps stand :aluminium | |
| 6.5 Retro reflectors: 6 | |
|
Mudguard |
7.1 Mudguard type: compact mudguard |
| 7.2 Mudguard checker plate :1.2mm aluminium in the front of mudguard | |
| 7.3 Pedal & aluminium step: 1.2mm aluminium decoration board | |
|
Interior & exterior |
8.1 A Kitchen with a cupboard and all appliance from yourself |
| 8.2 Horse protection frame: full padded | |
| 8.3 Horse ring: six | |
| 8.4 Rubber matting for ramp door: 10mm rubber matting | |
| 8.5 Rubber matting for floor: 10mm rubber matting | |
| 8.6 Rubber matting for inner side panel: 6mm rubber matting | |
| 8.7 Wood board for floor & ramp door :18mm hardwood plywood | |
| 8.8 Rug rack: side | |
| 8.9 Saddle rack: in saddle box | |
| 8.10 Saddle box 1500mm height for 3 saddles | |
| 8.11 Painting: single or customized | |
|
Dimensions |
9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 6325*2280*2590 |
| 9.2 BODY DIMENSIONS ( L x W x H: mm ) 5475*1980 *2230 | |
| 9.3 MAXIMUM INTERNAL DEMENSION: 5450*1930*2155 |
Send your message to us:
Write your message here and send it to us
