Mobile platform lift is a newly developed crawler-type scissor platform with outriggers. It relies on the release of the crawler belt from the ground, and the strong ground adhesion ability drives the movement and steering of the self-propelled crawler scissor lift. Mobile platform lift ability to adapt to the environment is particularly strong, and it can perform high-altitude operations in the field without power supply and complex road conditions. It adopts crawler wheels, weights the chassis, and the charging power drive system provides sufficient power for the equipment, and the drive lift is controlled to rise and fall through the control button. Crawler-type lift with outriggers has hydraulic outriggers that automatically retract. After the lift is raised, the outriggers are extended by controlling the lifting buttons of the outriggers to adjust the equipment to the level, which greatly ensures the safety of the working environment. It also makes it easy for mobile platform lift to work on rough roads. At the same time, its crawler wheels increase the contact area with the ground, and it can also walk and work on muddy roads in the field. It is ideal equipment for field high-altitude operations such as oil exploration, field communication line installation and construction. Goods Lift, Four Rails Lift Platform, Car Lifter,
Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin Detail:

China Daxlifter Rough Terrain Crawler Scissor Lift special design for bad working place, the crawler design will offer a good help for the lift to across some rough obstacle.For example ,grassland, some rough construction ground etc..This light crawler scissor lift don’t have automatic support leg,so it is not good for working on some place has big angle.if you want the scissor lift work on a ramp or slope.consider to purchase our automatic support leg equipped crawler scissor lift.·

Model

DX06LD

DX08LD

DX10LD

DX12LD

Capacity

450kg

450kg

320kg

320kg

Capacity of Extendable Platform

113kg

113kg

113kg

113kg

Max Platform Height

6m

8m

9.75m

11.75m

Max Working Height

8m

10m

12m

14m

Overall Length

2470mm

2470mm

2470mm

2470mm

Overall Width

1390mm

1390mm

1390mm

1390mm

Overall Height(guard rail open)

1745mm

2400mm

2530mm

2670mm

Platform Size

2270*1120mm

2270*1120mm

2270*1120mm

2270*1120mm

Extendable Platform Length

900mm

900mm

900mm

900mm

Min Turning Radius

0

0m

0m

0m

Gorund Clearance

150mm

150mm

150mm

150mm

Lifting Motor

48v/4kw

48v/4kw

48v/4kw

48v/4kw

Travel Motor

2*48v/4kw

2*48v/4kw

2*48v/4kw

2*48v/4kw

Drive Speed

2.4km/h

2.4km/h

2.4km/h

2.4km/h

Lifting Speed

5s/m

5s/m

5s/m

5s/m

Battery Charger

48v/25A

48v/25A

48v/25A

48v/25A

Net Weight

2400kg

2550kg

2840kg

3000kg

1

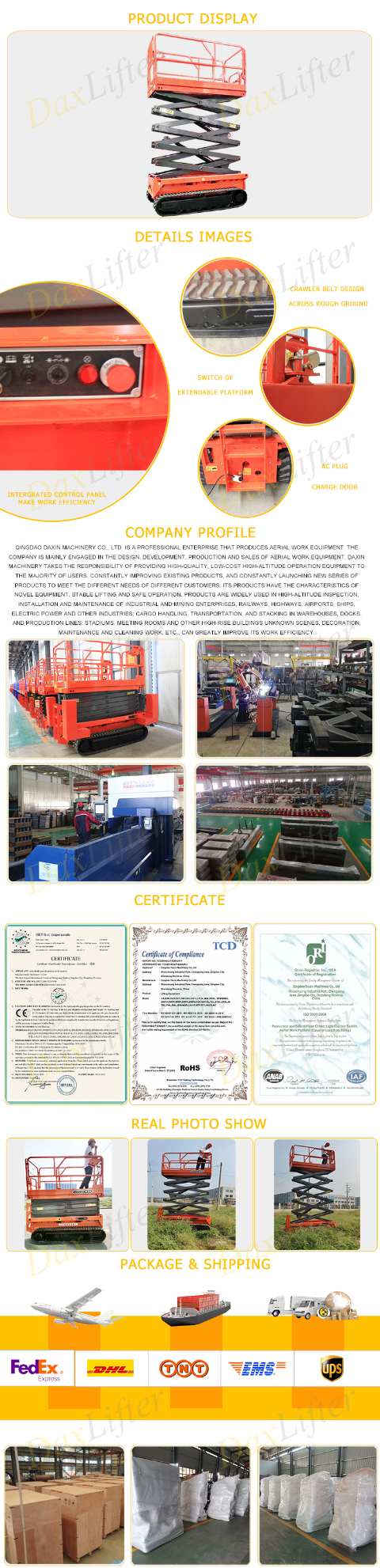

Product detail pictures:

Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin detail pictures

Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin detail pictures

Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin detail pictures

Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin detail pictures

Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin detail pictures

Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin detail pictures

Related Product Guide:
Scissor lift platform is the crawler-type aerial work equipment suitable for use on construction sites. Crawler-type design structure enables the equipment to have a larger contact area with the ground and has stronger grip ability, making it easy and safe to cross rough, uneven or muddy roads. Scissor lift platform has the function of automatic walking. Only one person can operate the machine to continuously complete lifting, forward, backward, steering and other actions during high-altitude work, which is very flexible and convenient. Scissor lift platform crawler design structure can improve the climbing ability of the equipment, so that it can climb the slope smoothly. In order to ensure that workers have a larger aerial work surface, the extension platform unlocked by foot can be quickly rolled out to the working point, which greatly expands the working area in the air. At the same time, working at heights is more dangerous than working on the ground. In order to reduce the risk of work and better protect the staff, the fence plays a good role in safety protection. Scissor lift platform type high-altitude scissor type machinery has a larger carrying capacity, and can accommodate multiple workers to work at the same time in the work site, which can speed up the progress of building construction. Factory Supply Compact Scissor Lift - China Daxlifter Crawler Type Rough Terrain Scissor Lift – Daxin , The product will supply to all over the world, such as: azerbaijan, Miami, Thailand,
