Chinese Professional Articulating Lift - Four Post Parking Lift China Manufacturer Suitable Price – Daxin Detail:

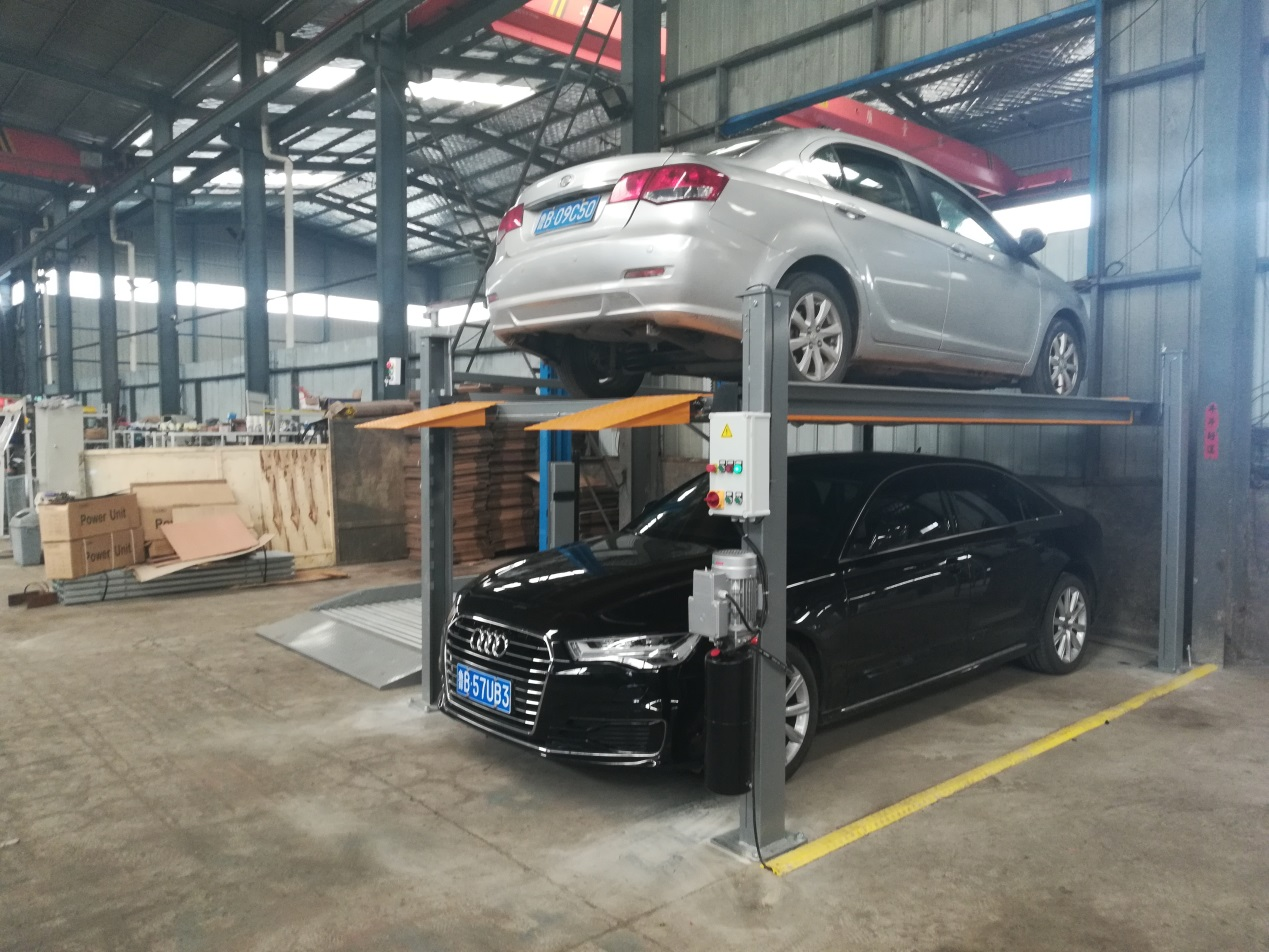

Four post parking lift is currently a very popular new parking method. It provides a simple and cost-effective way to create two independent parking spaces, suitable for permanent parking, valet parking or car storage. In order to meet different parking needs, we have designed different park lifting equipment.
At present, many communities and public places are slowly introducing four-post parking elevators, which greatly alleviates the problem of insufficient parking spaces in communities and public places. If you have a small space, we recommend a two-post parking lift, which occupies a smaller area and is suitable for home use.
Send inquiry to us for more detailed parameters.
FAQ
Q: What is the height range and load-bearing capacity of the four-post parking lift machine?
A: The height range is 1.8m-2.1m and the capacity is 3600kg.
Q: Will the platform automatically stop when it reaches a specified height?
A: The limiter is installed on our column, when the equipment rises to the designated position, it will automatically stop rising.
Q: How is your shipping capacity?
A: We have cooperated with many professional shipping companies for many years, and they will provide us with very good services in terms of ocean transportation.
Q: How do we send an inquiry to your company?
A: Both the product page and the homepage have our contact information. You can click the button to send an inquiry or contact us directly: sales@daxmachinery.com Whatsapp:+86 15192782747
Video
Specifications
|
Model No. |
FPL3618 |
FPL3620 |
FPL3621 |
|
Car Parking Height |
1800mm |
2000mm |
2100mm |
|
Loading Capacity |
3600kg |
3600kg |
3600kg |
|
Drive Through |
1896mm (it’s enough for parking family cars and SUV) |
||
|
Usages |
Suitable for parking and repairing cars and double space for storage |
||
|
Motor Capacity/Power |
3KW,Voltage is customized as per customer local standard |
||
|
Cylinder |
Italy Aston seal ring, double high pressure resin tubing, 100% no oil leakage |
||
|
Rated Oil Pressure |
18mpa |
18mpa |
18mpa |
|
Test |
125% dynamic load test and 175% static load test |
||
|
Control Mode |
Mechanical unlock by keep pushing the handle during the descent period |
||
|
Other Control Mode |
Electromagnetic unlock is optional (price as follows) |
||
|
Standard configurations |
3pcs plastic tray to prevent the oil drip from upper car while parking 1pc metal tray to load a jack for car maintenance use |
||
|
Middle Panel and Side Baffle |
Not included. It’s optional (price as follows) |
||
|
Car Parking Quantity |
2pcs*n |
2pcs*n |
2pcs*n |
|
Loading Qty 20’/40’ |
12pcs/24pcs |
12pcs/24pcs |
12pcs/24pcs |
|
Weight |
750kg |
850kg |
950kg |
|
Product Size |
4920*2664*2128mm |
5320*2664*2328mm |
5570*2664*2428mm |
|
Packing Size(1 SET) |
4370*550*705mm |
4700*550*710mm |
4900*550*710mm |
|
Packing Size(3 SETS) |
4370*550*2100mm |
4700*550*2150mm |
4900*550*2150mm |
Why Choose Us
Our Aluminum Work Platform has high safety and durable quality, providing longer service time and minimum downtime. As a professional manufacturer of scissors sets in northern China, we have provided thousands of scissors sets to the Philippines, Brazil, Peru, Chile, Argentina, Bangladesh, India, Yemen, Saudi Arabia, United Arab Emirates, Malaysia, Thailand and other countries. The safety precautions of the scissor lift are as follows:
Dual-cylinder lifting system:
The design of the double-cylinder lifting system ensures the stable lifting of the equipment platform.
Back shield:
The design of the tailgate can ensure that the car is safely parked on the platform.
High-quality hydraulic pump station:
Ensure the stable lifting of the platform and a long service life.
Anti-falling mechanical locks:
The design of the anti-falling mechanical lock ensures the stability of the platform.
Emergency button:
In case of emergency during work, the equipment can be stopped.
Balance safety chain:
The equipment is installed with a high-quality balanced safety chain to ensure the stable lifting of the platform.
Advantages
Simple structure:
The structure of the equipment is simpler and the installation is easier.
Multi mechanical lock:
The equipment is designed with multiple mechanical locks, which can fully guarantee the safety when parking.
Bolt fixing:
Four post parking lift equipped with special bolt installation to ensure the stability of the equipment.
Limited switch:
The design of the limit switch prevents the platform from exceeding the original height during the lifting process, ensuring safety.
Waterproof protection measures:
Our products have made waterproof protection measures for hydraulic pump stations and oil tanks, and they have been used for a long time.
Electromagnetic lock (Optional):
The equipment is equipped with four electromagnetic locks to ensure the safety and stability of the platform.
Application
Case 1
Our customers in Singapore purchase our four-post parking lifts mainly for parking in residential areas. In order to increase the parking space in the community, four-post parking lifts were purchased uniformly. Our elevator can be equipped with a remote control to control the lifting, so it is more convenient.
Case 2
One of our customers in Portugal bought a four-post parking lift mainly for parking in his auto repair shop. Because of the limited space of his auto repair shop, he bought our four-post parking lift in order to store more vehicles. After the installation, our quality was recognized by him, so he decided to buy back 3 sets of equipment for the auto repair shop.
Technical Drawing
(Model: DXFPP3618)
Technical Drawing
(Model: FPP3620)
Technical Drawing
(Model: FPP3621)
Product detail pictures:
