4 Post Car Parking Lift for 6 Cars

Short Description:

4 Post Car Parking Lift for 6 Cars effectively eliminates the need for two side-by-side 4 post 3 level car parking lift, resulting in significantly greater space efficiency. When garage height is sufficient, many car storage facility owners aim to maximize their vertical space, making a three-level


Technical Data

Product Tags

4 Post Car Parking Lift for 6 Cars effectively eliminates the need for two side-by-side 4 post 3 level car parking lift, resulting in significantly greater space efficiency. When garage height is sufficient, many car storage facility owners aim to maximize their vertical space, making a three-level parking lift an ideal solution. However, when space is limited, they often choose this 4 post 6 positions car parking lift instead. In addition to saving space, it also provides a cleaner and more visually appealing environment.

The dimensions can be adjusted within reasonable limits to accommodate sedans, classic cars, and SUVs. However, this setup is not recommended for heavy trucks, as the typical load capacity is around 4 tons per level.

Technical Data

Model FPL-6 4017
Parking Spots 6
Capacity 4000kg each floor
Each Floor Height 1700mm(Customization supported)
Lifting Structure Hydraulic cylinder&Lifting Rope
Operation Control Panel
Motor 3kw
Lifting Speed 60s
Voltage 100-480v
Surface Treatment Power Coated

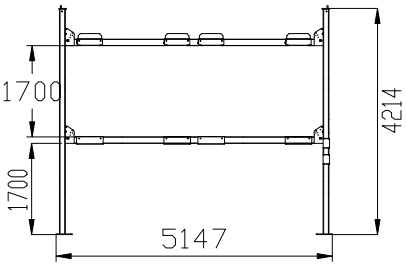

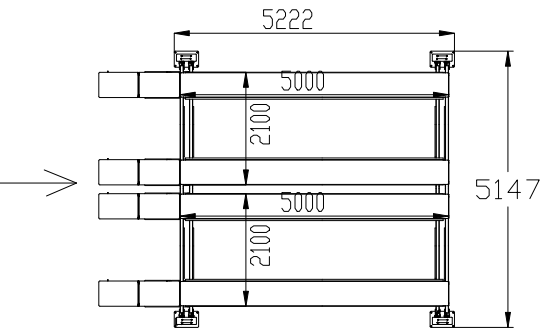

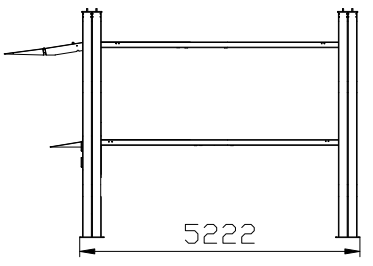

QQ20251114-133350 QQ20251114-133424 QQ20251114-133436
