hile the installation of a four post triple car parking lift is not overly complex, it does require systematic planning and precise execution. This type of lift essentially combines two unit four post systems with a specially designed intermediate platform to enable multi-level parking. Below are the key steps and important precautions for a successful installation:

1. Ground Preparation

Before installation, ensure the ground meets the required load-bearing capacity. Industry standards recommend a concrete thickness of at least 150 mm. To enhance foundation stability, it's advised to lay a steel mesh (mesh size: 100 mm; wire diameter: 8 mm) before pouring the concrete.

2. Equipment Positioning and Space Requirements

· Site Dimensions:

Allocate a space of at least 6.5 meters (length) by 2.7 meters (width). The minimum ceiling height should be no less than 5.5 meters.

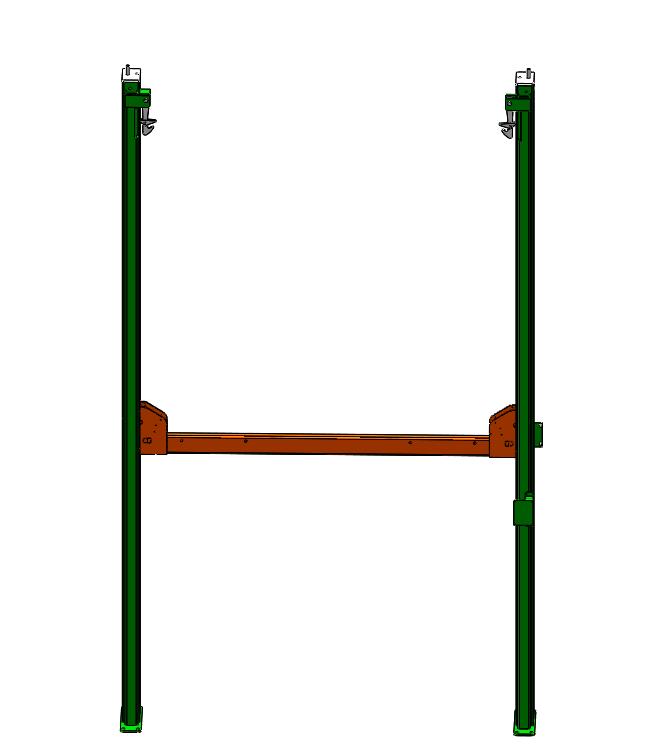

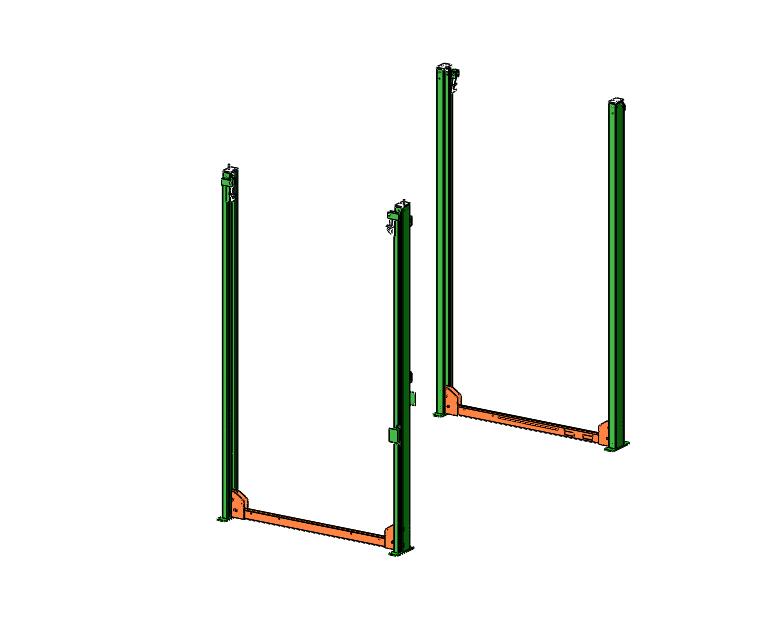

· Column Installation:

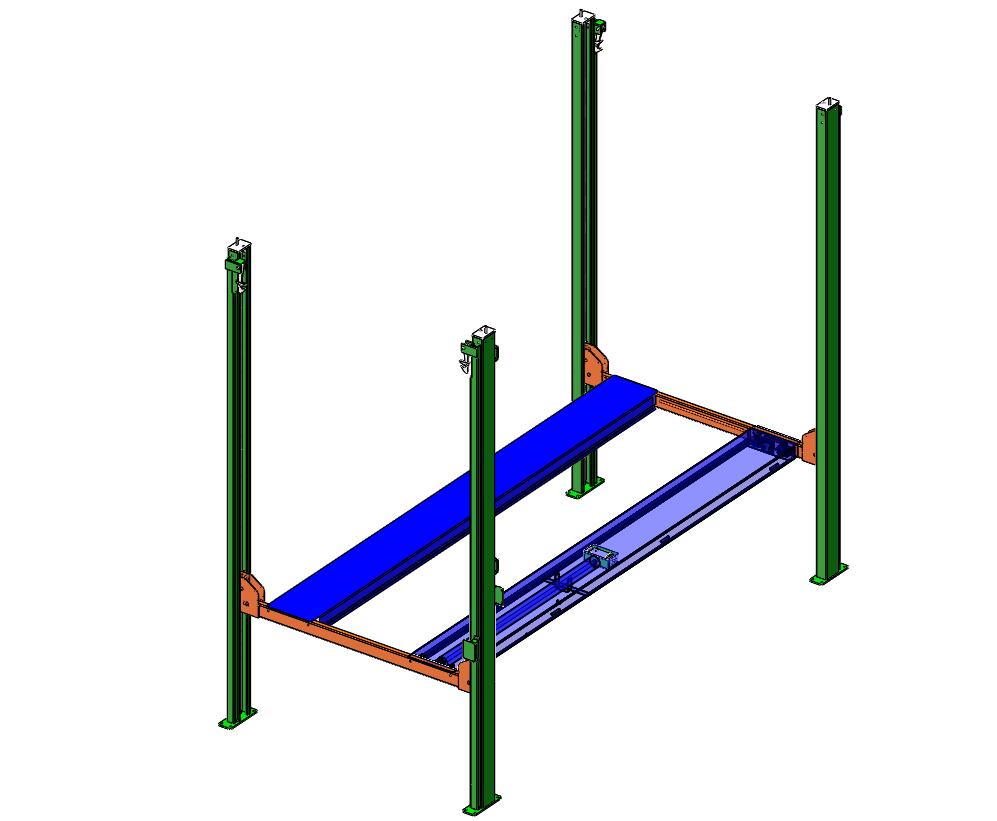

Align the four columns precisely, and use support beams to maintain balance. Large components such as crossbeams can be lifted into place with a crane or forklift.

3. Hydraulic System and Safety Devices

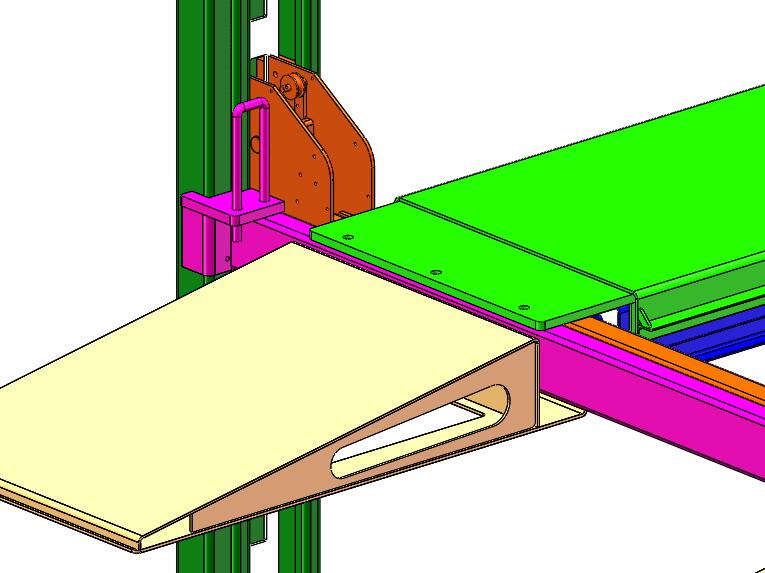

· The hydraulic cylinder is typically pre-mounted on the rear of the intermediate platform. The cable runs through a pulley system to the top of the columns.

· Safety Features:

Each column must be equipped with dual safety locks, including adjustable ladder-style locks and emergency automatic locking mechanisms to prevent falls in case of cable failure.

· The control panel and hydraulic power unit are usually installed behind the platform or inside the main column housing.

4. Fixing and Functional Testing

·Use anchor bolts to firmly secure the lift to the floor. It’s recommended to position the main platform close to the power unit for easier access.

· After installation, fully test the lifting function, locking system, and all safety devices to ensure proper operation.

Safety Tips

Installers must wear personal protective equipment (PPE) and strictly follow the manufacturer’s guidelines. If you lack relevant installation experience, it is strongly recommended to hire a professional installation team.



For more detailed instructions, please refer to the DAXLIFTER installation manual and video tutorial. With standardized procedures, the 4 post three level car parking lift can be safely and efficiently installed to expand vertical parking capacity.
