The 4-meter mini scissor lift is a highly efficient, hydraulically driven lifting device that has become an ideal solution for modern confined-space operations. It achieves smooth and stable lifting through a hydraulic system: a hydraulic pump delivers oil to the hydraulic cylinder, driving the piston upward and raising the scissor mechanism; when the oil returns, the piston descends and the scissor structure retracts. This reliable working principle makes the lift well suited for both material handling and personnel working at height, particularly in retail stores, warehouses, office buildings, and other environments with strict space limitations.

This type of equipment offers several outstanding advantages. Its scissor-type mechanical structure provides excellent stability and load-bearing capacity, ensuring a smooth and dependable lifting process. The hydraulic system delivers strong performance while maintaining long-term durability. Thanks to its compact design, the lift can move and operate flexibly in narrow spaces, and its multiple control options—manual, electric, or hydraulic—make operation simple and intuitive. Together, these features have made the 4-meter mini scissor lift highly popular in the market.

At present, there are two main models available: the SPM 4.0M conventional model and the SPM 4.0 self-propelled model. The conventional version requires manual pushing, with lifting powered by batteries, and the operator cannot control movement directly from the platform. In contrast, the self-propelled model features a fully electric drive system, allowing the operator to control both movement and lifting directly from the work platform. This significantly enhances operational flexibility and efficiency. In terms of pricing, self-propelled models typically cost about twice as much as conventional models, enabling users to make a choice based on their specific needs and budget.

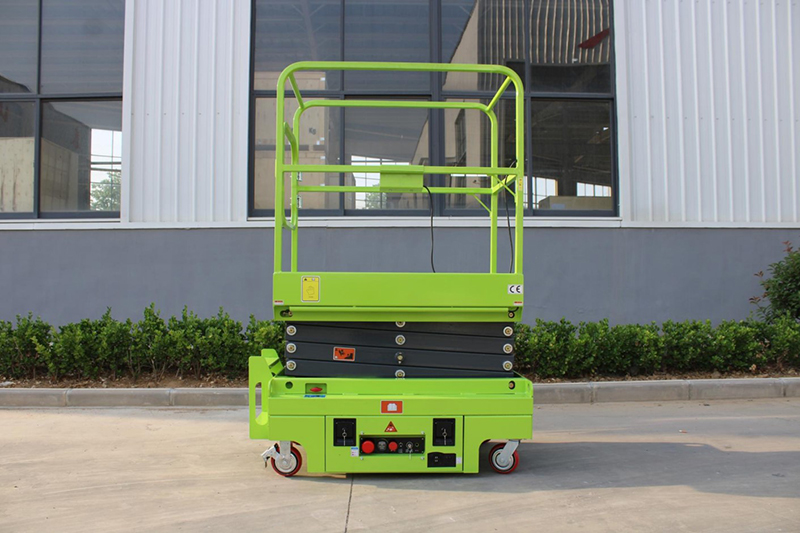

For example, the SPM 4.0 self-propelled model weighs 660 kg and features a compact design (1.92 m high, 1.32 m long, and 0.76 m wide), allowing it to easily pass through standard doorways, corridors, and elevators. The work platform has a maximum load capacity of 240 kg, accommodating up to two operators, and includes a 0.55 m extension platform to expand the working area. Its fully electric system is quiet, energy-efficient, and especially suitable for indoor use, meeting the requirements of high-level work in scenarios such as industrial maintenance, commercial buildings, and data centers.

Regular maintenance is essential to ensure long-term, stable operation. Before daily use, the battery level, electrical system, main structure, and pin conditions should be inspected. After use, the equipment should be returned to its charging station promptly. If the lift is not used frequently, it is recommended to check the battery condition and recharge it every two weeks. Additionally, regularly lubricating rotating pins and keeping the hydraulic oil clean—replacing it according to the specified maintenance schedule—are key measures for maintaining optimal performance.

As a leading scissor lift manufacturer in China, DAXLIFTER consistently upholds quality, innovation, and reliability as its core values. With a complete production system and strict quality control standards, our products meet international safety certification requirements. We provide one-stop services ranging from professional consultation and customized solutions to comprehensive after-sales support. Choosing DAXLIFTER mini scissor lifts means not only selecting efficient and durable equipment, but also partnering with a reliable long-term collaborator dedicated to enhancing your work efficiency and safety.
